The CUTTER 42 COMPRESSOR is a modern, digitally controlled machine for air plasma cutting of carbon steel, stainless steel, aluminium and copper components. It is ideal for production facilities with moderate cutting volumes, as well as for service and craft workshops.

The machine features a built-in air compressor, meaning it does not require an external compressor or air supply system. This enhances its mobility and allows for convenient use in the field. At the same time, the design allows for the connection of an external compressor when longer operation is required. Despite the built-in compressor, the cutter remains very lightweight and easy to transport, making it the ideal solution for working in various locations.

Technical specifications:
Catalogue number    7813263
EAN code    5903686620409
Welding/cutting/other methods    HF plasma cutting with pilot arc
Supply voltage [V]    AC 230
Technology    IGBT
Max cutting current [A]    40
Plasma cutting duty cycle [%]    60
Max. cutting thickness [mm]    20
Max. plasma current consumption [A]    30.8
Functions    2T/4T, Hot Start, Digital control, TEST, LED display, Integrated compressor, Mesh cutting, Post-purge, Pre-purge
Torch type    AG-60
Power socket type    10/25
Mains protection [A]    16
Warranty period for businesses [years]    1
Weight [kg]    12.8
Dimensions (L x W x H) [cm]    38.6 x 22.5 x 39.2

Key features and functions:
Built-in air compressor – no need for an external compressor or air supply system, greater mobility.
Lightweight and easy to transport – convenient to carry and use in the field.
Option to connect an external compressor – for more demanding applications.
2-stroke/4-stroke control – convenient adjustment of operating mode to the operator’s needs.
Air purge of the torch – extends the service life of consumable parts.
Pilot arc current adjustment and Hot Start – facilitate piercing the material and arc initiation, ensuring reliable cutting even on surfaces with paint, rust or oxides.
Mesh mode – automatic activation of the pilot arc when cutting continuity is lost (e.g. on mesh), which minimises time-consuming and energy-intensive re-ignition of the arc.
4 m plasma torch with HF ignition – for comfort and precision during operation.

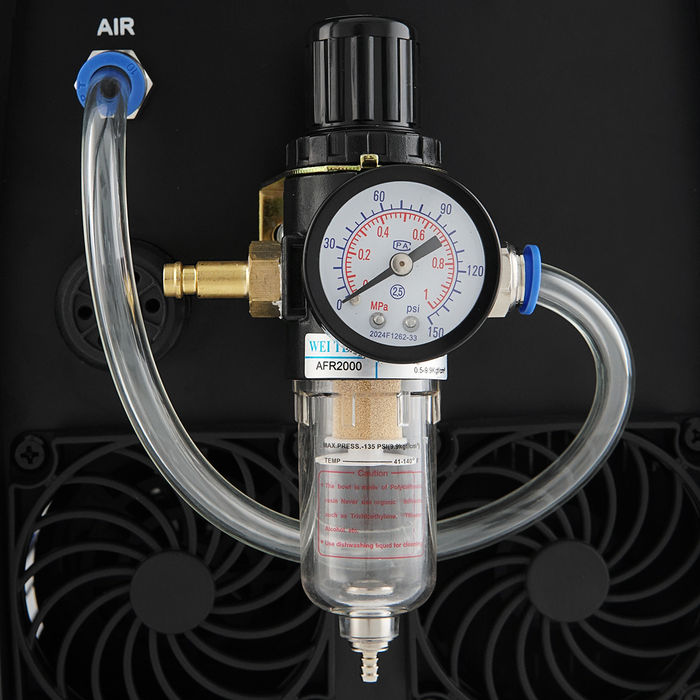

Air preparation unit with regulator – allows for adjustment and control of air pressure.

Equipment included:
CUTTER 42 COMPRESSOR plasma cutter

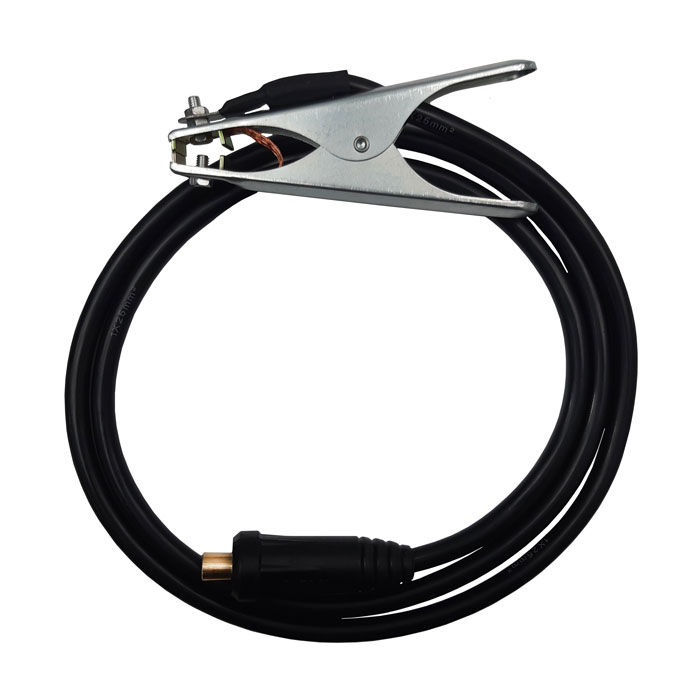

Ground cable
Air preparation unit
AG60 handheld plasma torch for CUTTER 41 LED, CUTTER 42 LED 5m G1/4"
