The Sherman DIGIMIG 141 CORE synergy welding machine is designed for MIG welding with steel powdered self-consuming wire without protective gas, as well as MMA (covered electrode) and TIG (tungsten electrode) methods. The equipment is mainly recommended for hobby and light casual workshop applications. When MIG welding, the equipment uses synergy programmes, simplifying its operation and allowing the welder to be used by people with less experience and hobbyists. The welder is equipped with 2T/4T, VRD, Hot Start and Arc Force functions. It is compatible with D100 wire reels.

Small dimensions, low weight and a shoulder strap make the welder extremely easy and comfortable to move.

The device is made with IGBT technology allowing a significant reduction in the weight and size of the welder and an increase in productivity while reducing energy consumption.

The welder is used indoors or in covered areas not exposed to direct weathering.

The set includes a MIG welding holder, electrode cable ground wire, welding disc and hammer with brush.

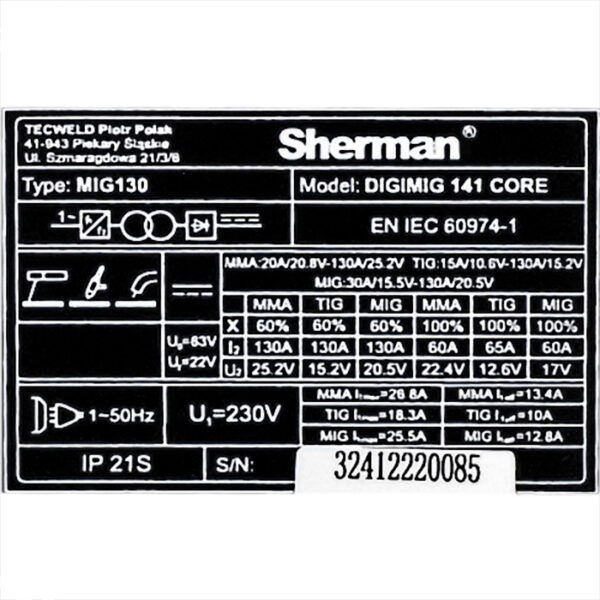

Technical specifications:

Order number 7813094
EAN code 5903686619137
Welding/cutting/other methods MIG/MAG, MMA DC, TIG Lift (by rubbing) DC
Supply voltage [V] AC 230
Design technology IGBT
Max MMA welding current [A] 130
Max TIG DC welding current [A] 130
Max welding current MIG/MAG [A] 130
MMA duty cycle [%] 60
TIG duty cycle [%] 60
MIG/MAG duty cycle [%] 60
No-load voltage [V] 63
MIG welding voltage [V] 15,5 - 20.5
Max MMA current draw [A] 26.8
Max TIG current draw [A] 18.3
Max MIG/MAG current draw [A] 25.5
MIG spot welding time [s] 1 - 20
Wire reel dia. Wire spool ø [mm] 100
Reel dimensions [mm] 25×8 (7×7)
Main method MIG/MAG
Functions:    2T/4T, Arc Force, Hot Start, 2-roll feeder, Gasless welding, MIG spot welding, Digital control, VRD, LED display, Synergy self-consuming wire
Mains protection [A] 16
Corporate warranty period [years] 1
Weight [kg] 4
Dimensions (D x SZ x W) [cm] 28 x 16.5 x 22.7


EQUIPMENT INCLUDED:

Sherman DIGIMIG 141 Core welder
MIG-14 holder for DIGIMIG 141 CORE
Electrode cable
Mass cable
Instruction manual in Polish (English version available on request)
