Sherman DIGIMIG 200 CHROME synergy welding machine is used for manual welding of steel and non-ferrous metals. It allows MIG/MAG, MIG/MAG with pulse, TIG Lift and MMA (shielded electrode) welding. The machine has synergy programmes for the MIG/MAG method for welding structural steels with CO2 shielding, compound and self-consuming wire and aluminum alloys. This simplifies its handling and allows the machine to be used by people with less experience and hobbyists. The welder is equipped with 2T/4T, Anti Stick, Hot Start, Arc Force and VRD functions and supports spools of D100 mm and D200 mm wire. The unit is made with IGBT technology allowing a significant reduction in the weight and size of the welder and an increase in productivity while reducing energy consumption. The kit includes a MIG chuck, electrode cable, mass cable, gas hose, additional Teflon cartridge and Al roll, shield and welding gloves.
TECHNICAL DATA:
Catalogue number: 7813080
EAN code: 5903686619113
Welding methods: MIG/MAG, MMA DC, TIG Lift DC
Supply voltage [V]: AC 230
Technology: IGBT
Max MMA welding current [A]: 160
Max welding current TIG DC [A]: 200
Max MIG/MAG welding current [A]: 200
Duty cycle MMA [%]: 60
Duty cycle TIG [%]: 60
Duty cycle MIG/MAG [%]: 60
No-load voltage [V]: 60
MIG welding voltage [V]: 16 - 22
Welding voltage correction: -5 - +5
MIG pulse frequency [Hz]: 20 - 250
Max power consumption MMA [kVA}: 7,1
Max power consumption TIG [kVA]: 7,1
Max power input MIG/MAG [kVA]: 7,1
Max MMA current consumption [A]: 32.3
Max current consumption TIG [A]: 20
Max current consumption MIG/MAG [A]: 26.9
Wire reel diameter [mm]: 100, 200
Roll dimensions [mm]: 28×8 (7×7)
Main welding method: MIG/MAG
Functions: 2T/4T, Anti-Stick, Arc Force, Hot Start, 2-roll feeder, MIG pulse, Gas-free welding, Digital control, Carbon steel synergy, VRD, LED display, Aluminium synergy, Self-stripping wire synergy
Warranty period: 1 year for companies, 2 years for end customers
Weight [kg]: 6
Dimensions: (L x W x H) [cm] 41 x 16.5 x 24
EQUIPMENT:

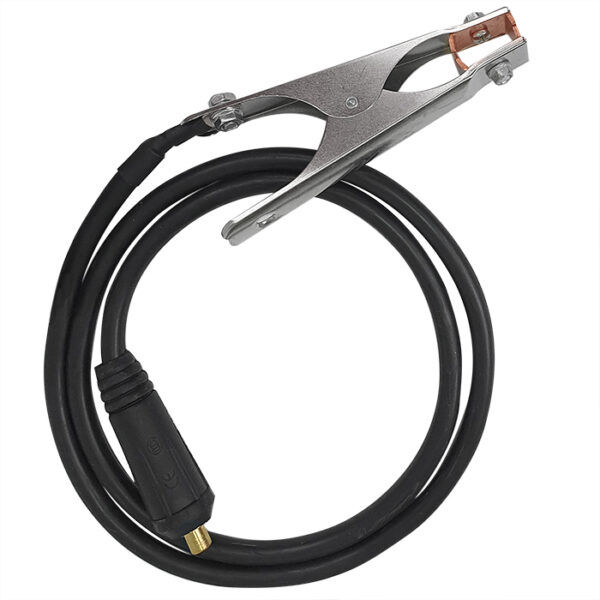

Ground wire
Electrode cable
Teflon insert blue MIG/MAG 3 m
Coated steel insert blue 3 m
Welding shield
Brush hammer
MIG-15 welding gun 3m for DIGIMIG 200 CHROME
Welding gloves
Warranty card (2 years for end customers / 1 year for businesses)
Please note that the machine includes European/Continental plug, you need to arrange the UK one.
