The DIGIMIG 200 HIT synergy welder is used for manual welding of non-ferrous metals. It is capable of MMA (Metal Metal Metal electrode), TIG Lift and MIG/MAG welding. Thanks to the change of polarity, the device allows MIG/MAG welding with both standard shielded wires and self-consuming powdered wires.

The device allows you to connect a Spool Gun-type holder with a mini wire feeder mounted in it and a D100 spool of steel or non-ferrous metal wire. The MIG/MAG method can be used in both manual and synergy modes. Synergic programmes are available for steel, Al alloys and for welding with self-consuming wire.

The machine is made with IGBT technology allowing a significant reduction in the weight and dimensions of the welder and an increase in productivity while reducing energy consumption. The welder can be used indoors or covered, not exposed to direct weathering.

The set includes a MIG holder, electrode cable, ground cable.

Technical specifications:

Order number 7812719
EAN code 5903686618079
Methods of welding/cutting/other brazing, MIG/MAG, MMA DC, TIG Lift (by rubbing) DC
Supply voltage [V] AC 230
 IGBT technology
Max MMA welding current [A] 180
Max welding current TIG DC [A] 200
Max MIG/MAG welding current [A] 200
Duty cycle MMA [%] 60
TIG duty cycle [%] 60
Duty cycle MIG/MAG [%] 45
No-load voltage [V] 65
Wire feeding speed [m/min] 2. 5-15
MIG welding voltage [V] 15.5 - 24
Wire burning time [s] 0-10
MIG spot welding time [s] 0-3
Max power consumption MMA [kVA}   4,9
Max power consumption TIG [kVA] 3, 6
Max power consumption MIG/MAG [kVA] 4.  8
Max current consumption MMA [A] 35
Max current consumption TIG [A] 25
Max current consumption MIG/MAG [A] 33
Wire reel diameter [mm] 100, 200
Roll dimensions [mm] 30x10x10
Main method MIG/MAG
Functions 2T/4T, Arc Force, Gas Test, Hot Start, Spool Gun Option, 2-roller feeder, Inductance adjustment, Gasless welding, Spot MIG welding, Digital control, Carbon steel synergy, Quick wire feed, Manual settings, VRD, LED display, Aluminium synergy, Self-stripping wire synergy
Mains protection [A] 25
Warranty period for companies [years] 1
Weight [kg] 14.38
Dimensions (L x W x H) [cm] 44 x 21 x 37

EQUIPMENT INCLUDED

DIGIMIG 200 HIT welder

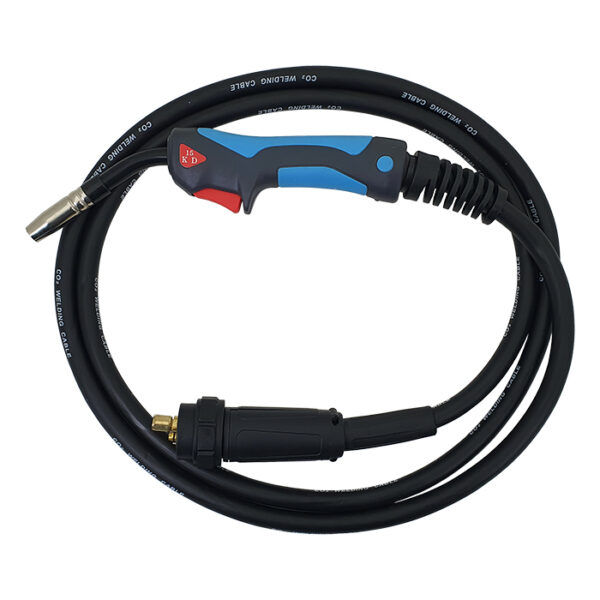

Welding gun TW-15/3m
Ground cable
Electrode cable
Packaging
Instruction manual in Polish (English version available on request)
