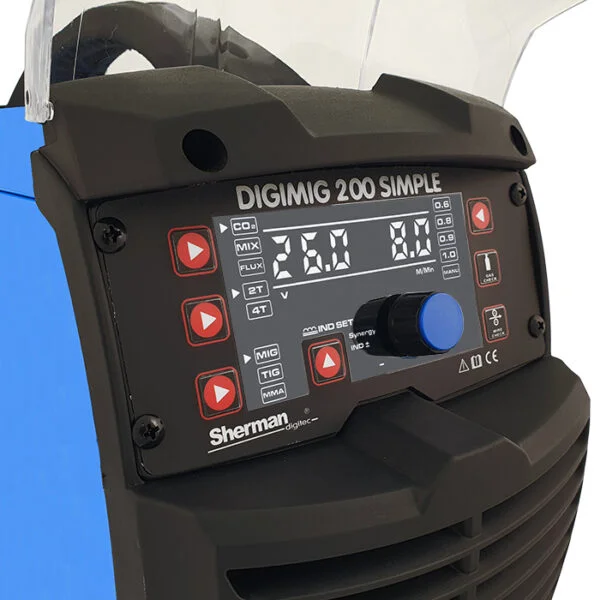

DIGIMIG 200 SIMPLE synergic inverter welding machine The DIGIMIG 200 SIMPLE synergic welding machine is an easy-to-use device for welding steel and non-ferrous metals using the MMA (coated electrode), TIG Lift (with arc ignition by rubbing) and MIG methods. It can also be used for brazing thin galvanized sheets. The MIG method can be used in manual and synergic mode, simplifying its operation. By changing the polarity, the device allows MIG welding using both standard wires shielded with protective gases and self-shielded flux-cored wires. Digital control allows full adjustment of parameters, arc dynamics and characteristics. The use of synergistic settings for carbon steel in the welding machine significantly simplifies its operation and allows it to be used by people with less experience and hobbyists. When welding with the MMA method, you can adjust the HOT START and ARC FORCE functions and turn off VRD. The device has a memory of the last setting, i.e. after turning it off and on again, the last set parameters are restored. The set includes a MIG gun, mass cable and electrode cable. SPECIFICATION:

• Catalog number 7812696

• EAN code 5903686617683

• Welding/cutting/other brazing methods, MIG/MAG, MMA DC, TIG Lift (by rubbing) DC

• Supply voltage [V] AC 230

• IGBT manufacturing technology

• Max. MMA welding current [A] 160

• Max TIG AC welding current [A] 200

• Max. MIG/MAG welding current [A] 200

• MMA duty cycle [%] 20

• TIG duty cycle [%] 20

• MIG/MAG duty cycle [%] 20

• Voltage at no load [V] 50

• Wire feed speed [m/min] 2 – 12.8

• MIG welding voltage [V] 16.5 – 24

• Welding voltage correction -1.0 – +1.0

• Max power consumption MMA [kVA} 8.5

• Max TIG power consumption [kVA] 8.5

• Max power consumption MIG/MAG [kVA] 8.5

• Max current consumption MMA [A] 34

• Max TIG current consumption [A] 29

• Max MIG/MAG current consumption [A] 39

• Wed. wire spool ø [mm] 100, 200

• Roll dimensions [mm] 30x10x10

• The main method is MIG/MAG

• 2T/4T functions, Arc Force, Gas Test, Hot Start, Microcontroller (MCU), 2-roll feeder, Inductance regulation, Gasless welding, Digital control, Fast wire feed, Manual settings, Synergic settings, VRD, LED display

• Network security [A] 25

• Warranty period for companies [years] 1

• Weight [kg] 8.8

• Dimensions (L x W x H) [cm] 450 x 175 x 315

EQUIPMENT:

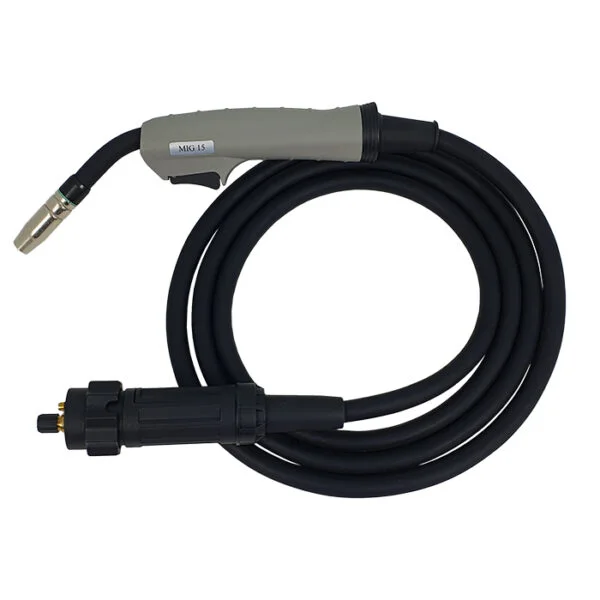

• TW-15/3m welding handle

• Electrode cable

• Ground cable
