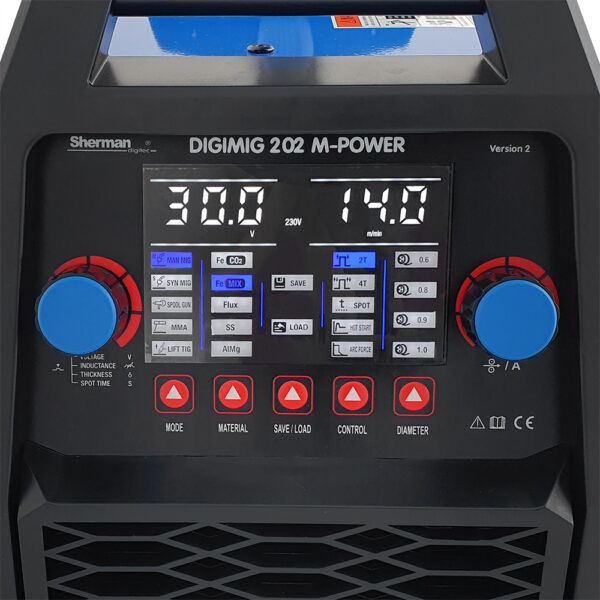

Sherman synergy welding machine DIGIMIG 202 M-POWER is used for manual welding of steel and non-ferrous metals. It is capable of MMA (Metal Metal Metal electrode), TIG Lift, and MIG/MAG welding. The inductance adjustment allows welding of thin sheets and soldering. The machine has synergy settings for the MIG/MAG method for welding structural steels, stainless steels and aluminium alloys, The change of polarity allows welding with self-consuming wire. The welder allows the connection of a Spool Gun (SG) type holder with a mini wire feeder mounted in it and a D100 spool of steel or coloured wire.

The unit allows 10 sets of welding parameters to be memorised and is equipped with a Fan Stop function that switches off the fan when the welder is at low load, which reduces noise and improves comfort. Illumination of the feeder chamber facilitates wire insertion and roll change. The R21 standard shielding gas connection allows the use of a quick coupler to make changing the shielding gas easier and quicker.

The kit includes a MIG holder, electrode wire and ground wire.

Technical specifications:

Part number: 7812921
EAN code: 5903686618451
Welding methods: brazing, MIG/MAG, MMA DC, TIG Lift (by rubbing) DC
Supply voltage [V]: AC 230
Design technology: IGBT
Max MMA welding current [A]: 180
Max DC TIG welding current [A]: 200
Max MIG/MAG welding current [A]: 200
MMA duty cycle [%]:   60
TIG duty cycle [%]:   60
MIG/MAG duty cycle [%]:   60
No-load voltage [V]:   59
Wire feed speed [m/min]:   2 - 14
MIG welding voltage [V]:   15,5 - 24
MIG spot welding time [s]:   0,1 - 20
Max power consumption MMA [kVA]: 8. 4
Max TIG power consumption [kVA]:   6,2
Max power consumption MIG/MAG [kVA]:   8,2
Max MMA current consumption [A]:   36,4
Max TIG current consumption [A]:    26,8
Max MIG/MAG current consumption [A]:   35,7
Wire spool diameter ø [mm]:   100, 200
Number of reels in feeder:   2
Roll dimensions [mm]:   30x10x10
Main welding method: MIG/MAG
Functions:   2T/4T, Arc Force, Fan Stop, Hot Start, Spool Gun option, Setting memory, 2-roll feeder, Inductance adjustment, Gasless welding, MIG spot welding, Digital control, Carbon steel synergy, Quick wire feed, Manual settings, VRD, LED display, Aluminium synergy, Self-stripping wire synergy, Stainless steel synergy
Mains protection [A]:   25
Corporate warranty period [years]:   1
Weight [kg]:   10,1
Dimensions (L x H x W) [cm]:   45 x 22 x 35

EQUIPMENT INCLUDED:

DIGIMIG 202 M-POWER welding machine
Welding gun TW-15/3m
Mass cable
Electrode cable
Packaging
Instruction manual in Polish (English version available on request)
