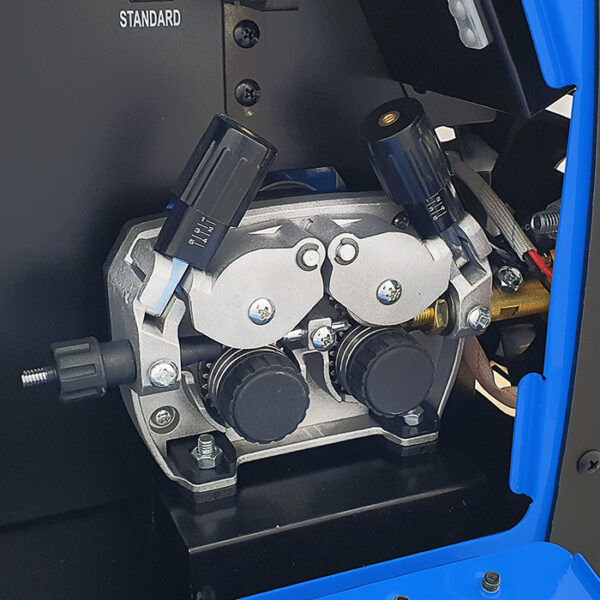

The Sherman DIGIMIG 209 ProHIT 4R synergy welder is used for manual welding of steel and non-ferrous metals using MMA (Metal Metal Metal electrode), TIG Lift and MIG/MAG methods. The inductance adjustment allows welding of thin sheets and soldering. Thanks to the change of polarity, it is possible to weld with both standard shielded wires and self-consuming powdered wires. The unit allows the connection of a Spool Gun type holder with a mini wire feeder mounted in it and a D100 spool of steel or coloured wire. During MIG/MAG welding, synergy programmes for steel and Al alloys are available and manual settings can also be used. The 4-roller feeder ensures stable wire feeding. The Fan Stop function used reduces noise at low welder load. The illumination of the feeder chamber makes it easier to insert wire and change rolls. The roll holder helps to keep the work area tidy. The R21 standard shielding gas connection allows the use of a quick coupler to make changing the shielding gas easier and quicker. A MIG holder, electrode wire and ground wire are included.

Technical specifications:

• Order number 7812829

• EAN code 5903686618451

• Welding methods brazing , MIG/MAG, MMA DC, TIG Lift (by rubbing) DC

• Supply voltage [V] AC 230

• IGBT welding technology

• Max MMA welding current [A] 160

• Max welding current TIG DC [A] 200

• Max MIG/MAG welding current [A] 200

• Duty cycle MMA [%] 60

• TIG duty cycle [%] 60

• Duty cycle MIG/MAG [%] 60

• No-load voltage [V] 65

• Wire feeding speed [m/min] 0. 5 - 18

• MIG welding voltage [V] 16.5 - 24

• Spot welding time MIG [s] 0 - 5

• Max power consumption MMA [kVA} 6,2

• Max power consumption TIG [kVA] 6. 2

• Max power consumption MIG/MAG [kVA] 6, 2

• Max MMA current consumption [A] 32

• Max current consumption TIG [A] 32

• Max current consumption MIG/MAG [A] 32

• Wire reel diameter [mm] 100, 200

• Roll dimensions [mm] 30x22x10 2RA

• Main method MIG/MAG

• Functions 2T/4T, Arc Force, Fan Stop, Hot Start, Spool Gun option, 4 roller feeder, Inductance adjustment, Gasless welding, Spot MIG welding, Digital control, Carbon steel synergy, Quick wire feed, Manual settings, VRD, LED display, Aluminium synergy

• Mains protection [A] 16

• Weight [kg] 12

• Dimensions (L x H x W) [cm] 49 x 22 x 37.5

EQUIPMENT INCLUDED:

• DIGIMIG 209 ProHIT 4R welding machine

• Welding gun TW-15/3m

• Ground cable

• Electrode cable

• Packaging

• Instruction manual in Polish (English version available on request)
