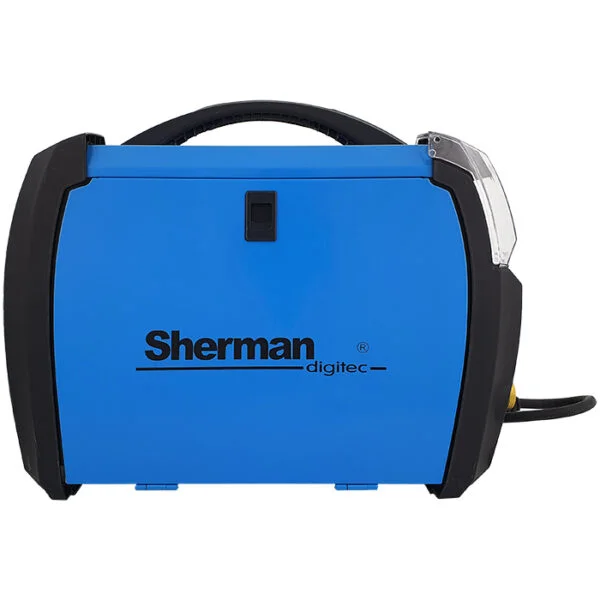

DIGIMIG 210 LCD DOUBLE PULSE synergic inverter welding machine

The DIGIMIG 210 LCD DOUBLE PULSE synergic welding machine with digital control is used for manual welding of steel and non-ferrous metals. It can also be used for brazing thin galvanized sheets.

It enables welding using MMA (coated electrode), TIG Lift (with arc ignition by rubbing), and MIG methods. The MIG method can be used in manual and synergic mode, simplifying its operation. By changing the polarity, the device allows MIG welding using both standard wires shielded with protective gases and self-shielded flux-cored wires.

The use of pulse or double pulse allows for better weld quality, high aesthetics and very high efficiency.

The use of refined synergic settings in the welding machine for carbon steel, stainless steel, aluminum and copper alloys allows it to be used by people with less experience and hobbyists.

When welding with the MMA method, you can adjust the HOT START and ARC FORCE functions and turn off VRD. The device has a memory of the last setting, i.e. after turning it off and on again, the last set parameters are restored. Thanks to the use of the Fan Stop function, which turns off the fan at low load of the welding machine, the noise level is significantly reduced.

The welder is factory configured for welding aluminum.

The set also includes a MIG gun, mass cable, electrode cable, additional steel roller, steel and Teflon insert.


SPECIFICATION:

Catalog number 7812698
EAN code 5903686617720
Welding/cutting/other brazing methods, MIG/MAG, MMA DC, TIG Lift (by rubbing) DC
Supply voltage [V] AC 230
IGBT manufacturing technology
Max. MMA welding current [A] 200
Max TIG DC welding current [A] 200
Max. MIG/MAG welding current [A] 200
MMA duty cycle [%] 30
TIG duty cycle [%] 30
MIG/MAG duty cycle [%] 30
Voltage at no load [V] 64
Wire feed speed [m/min] 2 – 12.8
Approach speed of feeder 3 – 6
MIG welding voltage [V] 15.5 – 24
Welding voltage correction -5 – +5
MIG gas post-flow [s] 0.1-2
MIG pulse frequency [Hz] 1-2.5
MIG pulse width [%] 20-80
Max power consumption MMA [kVA} 8.5
Max TIG power consumption [kVA] 8.5
Max power consumption MIG/MAG [kVA] 8.5
Max current consumption MMA [A] 45
Max TIG current consumption [A] 29
Max MIG/MAG current consumption [A] 39
Wed. wire spool ø [mm] 100, 200

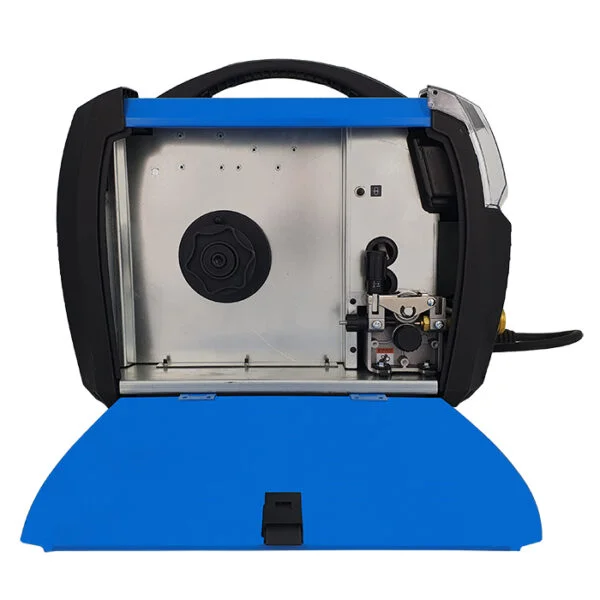

Feeder type 2RA
Roll dimensions [mm] 30x22x10 2RA
The main method is MIG/MAG

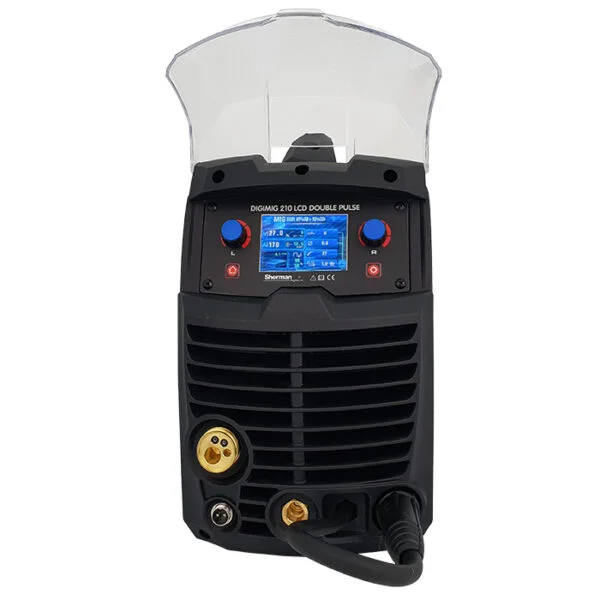

2T/4T functions, Arc Force, Fan Stop, Hot Start, Microcontroller (MCU), Spool Gun option, 2-roll feeder, Double Pulse, MIG gas post-flow, Feeder approach speed, MIG Pulse, Inductance regulation, Gasless welding, Control digital, Manual settings, Synergic settings, VRD, Electrode selection, LCD display
Network security [A] 25
Warranty period for companies [years] 1
Weight [kg] 13.3
Dimensions (L x W x H) [cm] 495 x 210 x 330


EQUIPMENT:

Sherman DIGIMIG 210 LCD Double Pulse Welder
TW-15/3m welding handle
Electrode cable
Ground cable
Blue coated steel insert 3 m
Black Teflon insert
