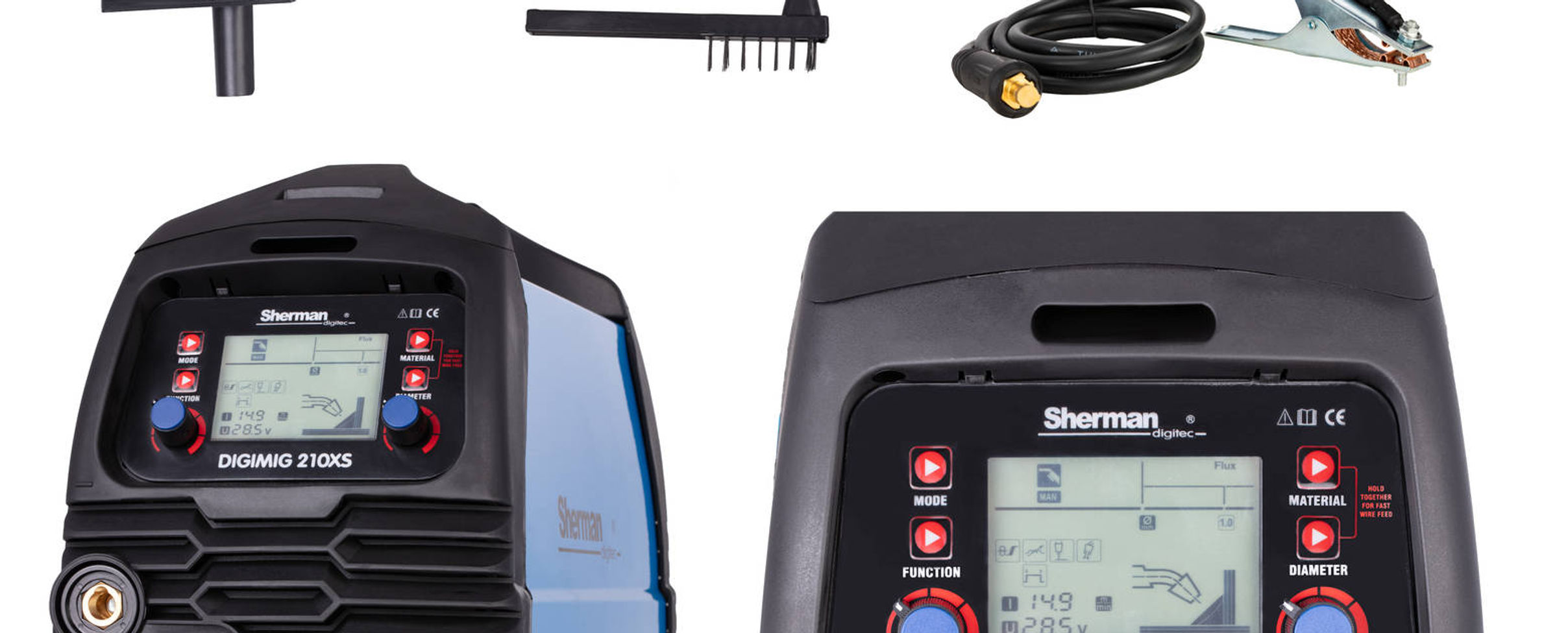

Sherman Synergic inverter welding machine DIGIMIG 210XS

The Synergic DIGIMIG 210XS welder is used for manual welding of steel and non-ferrous metals. It enables MMA (coated electrode), TIG Lift, and MIG / MAG welding. The MIG / MAG method can be used in manual and synergic mode, simplifying its operation and allowing the welding machine to be used by people with less experience and hobbyists. Due to the change of polarity, the device allows you to weld with the MIG / MAG method using both standard wires in a protective gas shield and self-shielding flux-cored wires.


The device allows you to connect a Spool Gun (SG) with a mini wire feeder and a D100 spool of steel or colored wire.
Digital control allows for full adjustment of parameters, arc dynamics, characteristics and operating mode of the welding machine. The synergic settings used in the welder significantly simplify its operation and allow it to be used by people with less experience and hobbyists.


The device has the memory of the last settings, i.e. after turning it off and on again, the last set parameters are restored.
The device is made in IGBT technology, which allows for a significant reduction in the weight and dimensions of the welding machine and an increase in efficiency while reducing energy consumption.


The welder is used in closed or roofed rooms, not exposed to direct weather conditions.


The set includes:

Sherman Synergic DIGIMIG 210XS welder
MIG welding torch
Electrode cable
Ground cable
Welding shield with a brush.
Box
Manual in Polish (English version available on request)

Technical parameters:

Catalog number    7812583
Supply voltage [V]    AC 230 50Hz
Welding methods    MIG, MMA, Lift TIG, braze welding
Production technology    IGBT
Welding current [A]    MIG: 200 MMA: 200 TIG: 200
Duty cycle [%]    35 (MIG / 40 (MMA) / 35 (TIG)
Max. current consumption [A]    32
Max. power consumption [kVA]    7.1
Welding current adjustment    Liquid
Wed spool with wire [mm]    100, 200
Speed wire feed [m / min]    2 - 20
Weight [kg]    13
Dimensions (L x W x H) [mm]    530 x 230 x 390

Functions:

Digital control,
Arc Force,
Hot Start,
2T / 4T,
VRD,
TIG Lift,
 Inductance adjustment,
Welding without gas,
 2-roll feeder,
 Spool Gun option,
Manual MIG,
Synergic MIG, MMA, TIG Lift,
Welding without gas,
Welding spotlights
