Synergic inverter welding machine DIGIMIG 215 DUALPULSE

The synergistic welding machine DIGIMIG 215 DUALPULSE is used for manual welding of steels and non-ferrous metals. It enables welding with MMA (coated electrode), TIG Lift and MIG / MAG methods. The MIG / MAG method can be used in manual and synergic mode, simplifying its operation and allowing the welding machine to be used by people with less experience and hobbyists.
Due to the change of polarity, the device allows you to weld with the MIG / MAG method using both standard wires in a protective gas shield and self-shielding flux-cored wires. The use of a pulse or a double pulse allows for a better quality of the weld, high aesthetics with very high efficiency. Digital control allows for full adjustment of parameters, arc dynamics, characteristics and operating mode of the welding machine.

The device has the memory of the last setting, i.e. after turning it off and on again, the last set parameters are restored.

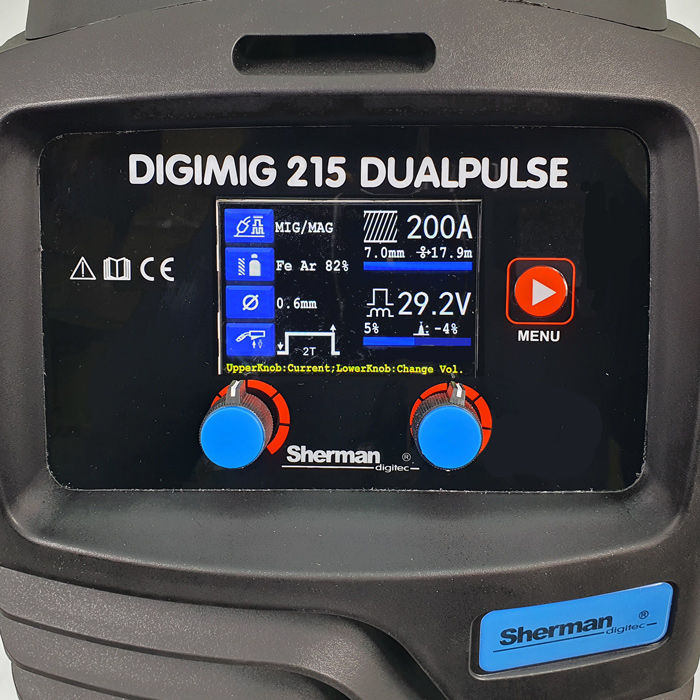

The welder is equipped with an easy-to-read LCD display with an option to select a menu in Polish.
The device allows you to connect a Spool Gun (SG) with a mini wire feeder and a D100 spool of steel or colored wire.
The welder is factory-configured for welding aluminum, the equipment also includes a steel insert and a roll for welding steel. The set also includes a MIG welding gun, electrode cable, ground cable, connection hose for shielding gas and a welding shield with a brush.


EQUIPMENT

MIG welding torch
Electrode cable
Mass cable
Welding shield
Hammer with a brush
Steel insert
Roller for steel

TECHNICAL DATA

Catalog number: 7812202
Supply voltage [V]: AC 230 50Hz
Welding methods: MIG, MMA, Lift TIG, braze welding
Production technology: IGBT
Welding current [A]: MIG: 200 MMA: 200 TIG: 200
Duty cycle [%]: 60
Max. current consumption [A]: 40,6
Max. power consumption [kVA]: 7,7
Welding current adjustment: Liquid
Wed spool with wire [mm]: 100,200
Speed wire feed [m / min]: -
Weight [kg]: 15
Dimensions (L x W x H) [mm]: 490 x 220 x 375

FUNCTIONS:
Digital control,
Hot Start,
2T / 4T,
VRD,
TIG Lift,
Inductance adjustment,
Pulse,
Gas pre-flow and post-flow time adjustment,
Welding without gas,

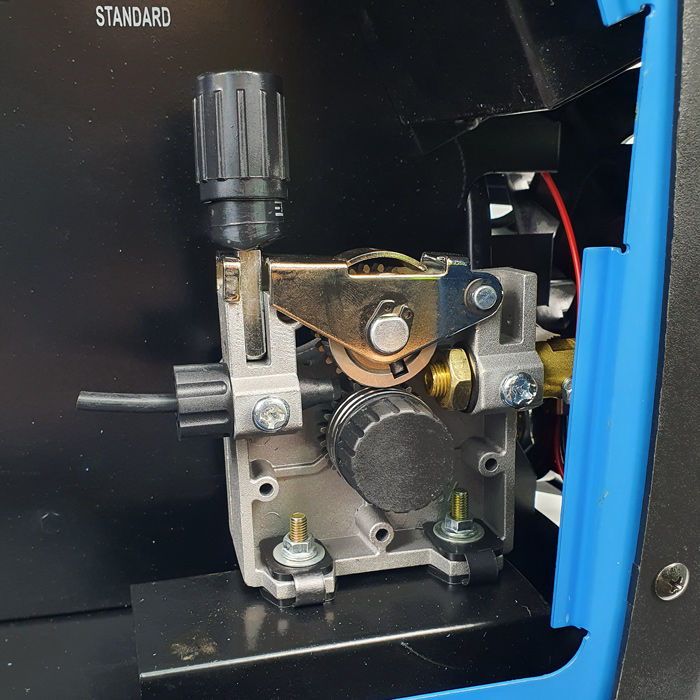

2-roll feeder,
Spool Gun option,
Memory settings,
Manual MIG,
Synergic MIG, MMA , MMA Pulse, TIG Lift, TIG Lift Pulse, Double Pulse,
Welding without gas,
Spot welding
