Sherman Inverter Synergic DIGIMIG 200 Synergic

The synergistic welding machine DIGIMIG 200 SYNERGIC is an innovative device designed for manual welding of steel and non-ferrous metals. It enables MMA (coated electrode), TIG Lift, and MIG / MAG welding. Thanks to the change of polarity, the device allows welding with the MIG / MAG method using both standard wires in a protective gas shield and self-shielded flux-cored wires.

The welder allows you to connect a Spool Gun (SG) with a mini wire feeder and a D100 spool of steel or colored wire. The digital control allows easy adjustment of parameters, characteristics and arc dynamics. The use of synergic settings in the welder for ordinary steel and aluminum alloys significantly simplifies its operation and allows it to be used by people with less experience and hobbyists.

During MMA welding, it is possible to adjust the ARC FORCE, HOT START functions and enable / disable the ANTI STICK and VRD functions.

The device has the memory of the last setting, i.e. after turning it off and on again, the last set parameters are restored.

TECHNICAL DATA:     • Catalog number: 7812298     • Supply voltage [V]: 230 AC 50Hz     • Welding methods: MIG, MMA, Tig Lift, braze welding     • The technology: IGBT     • Welding current [A]: MIG 200, TIG 200, MMA 180     • Duty cycle [%]: MIG 45%, TIG 60%, MMA 60%     • Max. current consumption [A]: 33 (MIG) / 33 (MMA) / 24 (TIG)     • Max. power consumption [KVA]: 6.6     • Adjust welding current: Liquid     • Avg. a spool of wire [mm]: 100, 200     • Of speed. Wire feed [m / min]: 2 - 15     • Weight [kg]: 16     • Dimensions (D x W x H) [mm]: 480 x 210 x 330 Functions:

• Digital control

• Arc Force

• Hot Start

• 2T / 4T

• VRD


• TIG Lift


• Inductance adjustment

• Welding without gas

• 2-roll feeder

• Spool Gun option


• Anti-Stick


• Manual MIG


• Synergic MIG, MMA, MMA Pulse, TIG Lift


• Welding without gas

Equipment:

• Sherman Synergic DIGIMIG 200 Synergic inverter welder

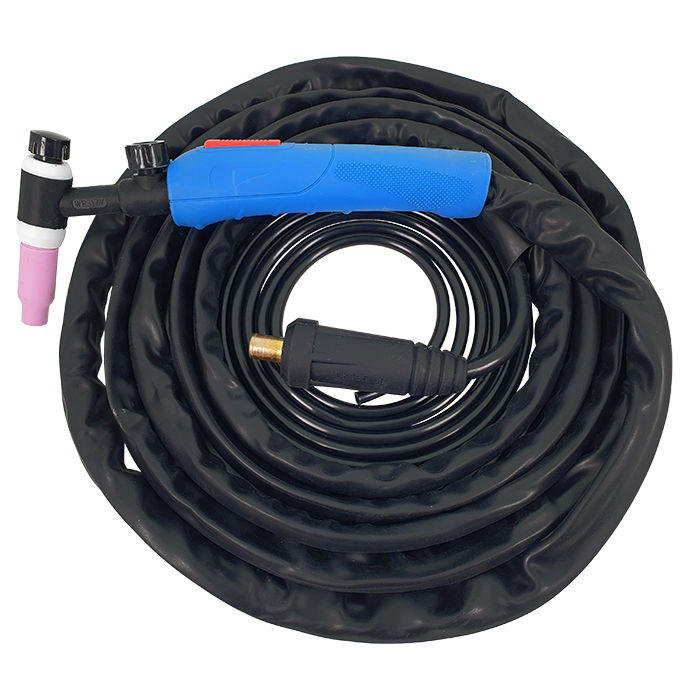

• Welding holder TW-15/3m


• Electrode cable

• Mass cable

• Manual in Polish, English version available on request

• Warranty card (2 years for end customers / 1 year for businesses)
