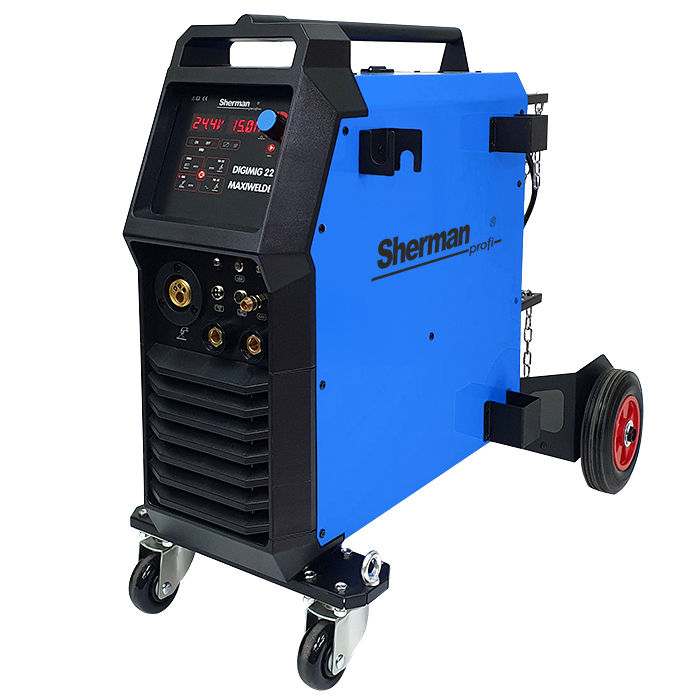

The DIGIMIG 224 MAXIWELDER synergic welder is designed for manual welding of steel and non-ferrous metals. It supports MMA (coated electrode), AC TIG, DC TIG and MIG/MAG welding methods. Inductance adjustment also allows for brazing of thin sheets. In the TIG method, full adjustment of pulse and AC current parameters is possible, as well as selection of the AC waveform. Arc striking can be achieved using an ioniser (HF) or by rubbing (Lift). When welding using the MIG/MAG method, it is possible to select welding parameters manually or use synergic settings, which simplify operation and allow the welder to be used by less experienced operators and hobbyists.

Technical specifications:
Catalogue number    7813092
EAN code    5903686619144
Welding/cutting/other methods    brazing, MIG/MAG, MMA DC, TIG HF AC, TIG HF DC, TIG Lift (by rubbing) DC
Supply voltage [V]    AC 230
Technology    IGBT
Max. MMA welding current [A]    200
Max TIG DC welding current [A]    200
Max MIG/MAG welding current [A]    200
MMA duty cycle [%]    60
TIG duty cycle [%]    60
MIG/MAG duty cycle [%]    60
No-load voltage [V]    65
MIG gas flow time [s]    0–9.9
Current rise time [s]    0 – 15
Base current [A]    5–95%
Current decay time [s]    0–25
TIG gas flow time [s]    0.05–30
TIG pulse frequency [Hz]    0.5 – 200
TIG pulse width [%]    5–95
AC frequency [Hz]    40 – 200
AC balance [%]    30–70
Max. MMA current draw [A]    41.7
Max TIG current draw [A]    26.8
Max. MIG/MAG current consumption [A]    35.7
Wire spool diameter [mm]    200, 300
Main method    MIG/MAG
Functions    Arc Force, Fan Stop, Electrode cleaning function, Hot Start, Current ramp-up, Current ramp-down, Spool Gun option, 4-roller feeder, TIG gas post-flow, Feeder run-up speed, Gas pre-flow, TIG pulse, Inductance adjustment, Gasless welding, Digital control, Carbon steel synergy, Fast wire feed, Manual settings, VRD, AC waveform selection, LED display, Aluminium synergy, Self-shielded wire synergy
Mains protection [A]    25
Warranty period for businesses [years]    1
Number of spools in the feeder    4
Coil dimensions [mm]    30x15x12 4RA
Weight [kg]    44
Dimensions (L x W x H) [cm]    89.5 x 50.5 x 77

Thanks to automatic polarity reversal, the machine allows MIG/MAG welding using both standard gas-shielded wires and self-shielded flux-cored wires.
The welder is equipped with a 4-roller wire feeder and features Hot Start, Arc Force, VRD and Soft Start. It also features numerous user-friendly features: a Fan Stop function that switches off the fan at low load, feed chamber lighting, a roll holder and MIG torch holder, TIG wire holders, lighting in front of the welder, and an R21 quick-connect gas connection.
The unit is manufactured using IGBT technology, which allows for a significant reduction in the weight and dimensions of the welder, as well as increased efficiency whilst reducing energy consumption.
The set includes a 3m MIG torch, a TIG torch with ionisation ignition, an electrode cable, a ground cable and a magnetic holder for the TIG torch.

Equipment included:
TW-15/3m welding torch
T-17 X35 TIG welding torch
Electrode holder – 35 mm plug
Ground cable – 35 mm plug
Magnetic holder for TIG torch

Optional extras (additional charge):
CP2 (FP-2) foot control – DIGITIG pulse ACDC 200GD-315GD 200LCD AC/DC
Spool Gun M-15
