The synergistic welding machine DIGIMIG 300 Pulse is an innovative device for manual welding of steel and non-ferrous metals using the MIG / MAG, MMA (coated electrode) and Lift TIG methods. It can also be used for braze welding of thin (up to 3 mm) galvanized sheets. The welder allows you to connect a Spool Gun (SG).
Digital control allows for full adjustment of parameters, arc dynamics, characteristics and manual or synergic operating mode in the MIG / MAG method. The use of synergic settings in the welder for ordinary steel, stainless steel and aluminum alloys significantly simplifies its operation and allows it to be used by people with less experience and hobbyists. The use of a pulse or a double pulse allows for a better quality of the weld, high aesthetics with very high efficiency.
The device can be welded using the standard MMA or MMA method with pulsation, which allows for a higher quality of the weld. In MMA you can adjust ARC FORCE, HOT START and turn off VRD.
DIGIMIG 300 Pulse enables TIG welding with DC pulsation with pulse characteristic regulation. The welder allows the use of several operating modes, including the option of spot welding. The device has the memory of the last setting, i.e. after turning it off and on again, the last set parameters are restored. It is also possible to save 35 sets of settings with easy access to program save / recall mode. On the inside of the spool chamber cover there is a shortened guide for the welder to facilitate the day-to-day operation of the device with a detailed description of access to the adjustable operating parameters.

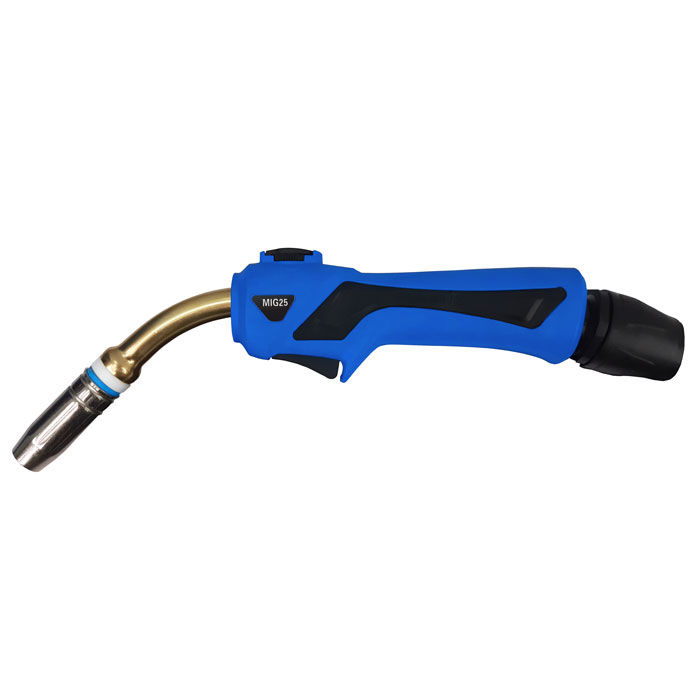

The welder is equipped with a unique MIG torch with a knob in the handle that allows remote adjustment of welding voltage / current during work in synergic mode.
The practical hanger for the MIG torch on the housing of the device facilitates the organization of the workplace and storage of the welding machine.
Additional Al rollers and a Teflon insert in the standard equipment make the device fully ready for aluminum welding without the need for additional accessories.

TECHNICAL DATA:

Catalog number: 7812457
Supply voltage [V]: AC 3x400 50Hz
Welding methods: MIG, MMA, Lift TIG, braze welding
Manufacturing technology: IGBT
Welding current [A]: MIG: 300 MMA: 280 TIG: 280
Duty cycle [%]: MIG: 45 MMA: 50 TIG: 60
Max. current consumption [A]: 18 (MIG) / 17 (MMA) / 11.5 (TIG)
Max. power consumption [kVA]: MIG: 10 MMA: 8.8 TIG: 5.8
Welding current control: Smooth
Wed spool with wire [mm]: 200, 300
Speed wire feed [m / min]: 2 - 14
Weight [kg]: 43
Dimensions (L x W x H) [mm]: 935 x 402 x 775

FUNCTIONS:
Digital control,
Arc Force,
Hot Start,
2T / 4T,
VRD,
TIG Lift,
Rising current,
Current drop,
Inductance regulation,
Pulse,
Adjustment of gas pre-flow and post-flow time,
Welding without gas,
4-roll feeder,
Spool Gun option,
Settings memory, manual MIG,
Synergic MIG,
MMA, MMA Pulse,
TIG Lift,
TIG Lift Pulse,
Double Pulse,
Welding without gas,
Spot welding

EQUIPMENT:

DIGIMIG 300 Pulse Welder
MIG torch with adjustable welding current
Electrode cable
Mass cable
guide roller Al 2RA 30x22x10mm 1.0 / 1.2 mm
Teflon cartridge
