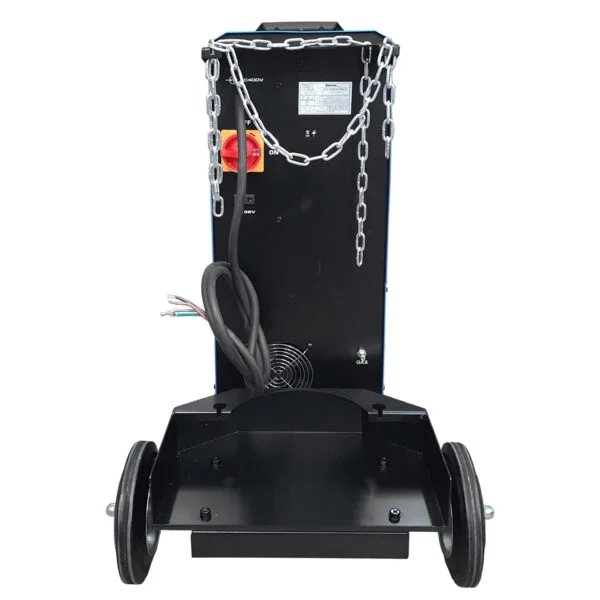

DIGIMIG 350 COMBO LCD synergic inverter welding machine

The DIGIMIG 350 COMBO LCD synergic welding machine is used for welding steel and non-ferrous metals and for brazing thin galvanized sheets. It enables welding using MMA, TIG Lift and MIG methods. The MIG method can be used in manual mode and with the use of synergistic programs. By changing the polarity, the device allows MIG welding using both standard wires shielded with protective gases and self-shielded flux-cored wires.

Digital control, a very large (7″) color LCD display, intuitive menu and synergistic settings for carbon steel and aluminum alloys used in the welding machine significantly simplify its operation.

When welding with the MMA method, you can adjust the HOT START and ARC FORCE functions and turn off VRD.

The welding handle hanger helps keep things tidy and increases work safety. Thanks to the use of the Fan Stop function, which turns off the fan at low load of the welding machine, the noise level is significantly reduced.

The set includes a MIG gun, mass cable and a set of rollers for 0.8/1.0 and 1.0/1.2 steel.


Technical specification:
Catalog number 7812700
EAN code 5903686617782
Welding/cutting/other brazing methods, MIG/MAG, MMA DC, TIG Lift (by rubbing) DC
Supply voltage [V] AC 3×400
IGBT manufacturing technology
Max. MMA welding current [A] 300
Max MIG/MAG welding current [A] 350
Max TIG AC welding current [A] 350
MMA duty cycle [%] 60
TIG duty cycle [%] 60
MIG/MAG duty cycle [%] 60
Voltage at no load [V] 64
Wire feed speed [m/min] 2 – 18
Feeder approach speed 4-10
MIG welding voltage [V] 16.5-31.5
Welding voltage correction -5 – +5
MIG gas post-flow [s] 0.1-2
Max power consumption MMA [kVA} 12.1
Max TIG power consumption [kVA] 12.1
Max power consumption MIG/MAG [kVA] 12.1
Max current consumption MMA [A] 20
Max TIG current consumption [A] 18
Max MIG/MAG current consumption [A] 23
Wed. wire spool ø [mm] 200, 300
Roll dimensions [mm] 30x22x10 2RA
The main method is MIG/MAG
2T/4T functions, Arc Force, Fan Stop, Gas Test, AC 36 V power socket, Hot Start, Microcontroller (MCU), Spool Gun option, 4-roll feeder, MIG gas post-flow, feeder approach speed, inductance regulation, welding without gas, Digital control, Fast wire feed, Manual settings, Synergic settings, Electrode selection, LCD display
Network security [A] 25
Warranty period for companies [years] 1
Weight [kg] 48
Dimensions (L x W x H) [cm] 950 x 560 x 860

EQUIPMENT INCLUDED

Tecweld TW-36/3m welding torch
Ground cable
Set of rollers for steel 0.8/1.0 and 1.0/1.2
