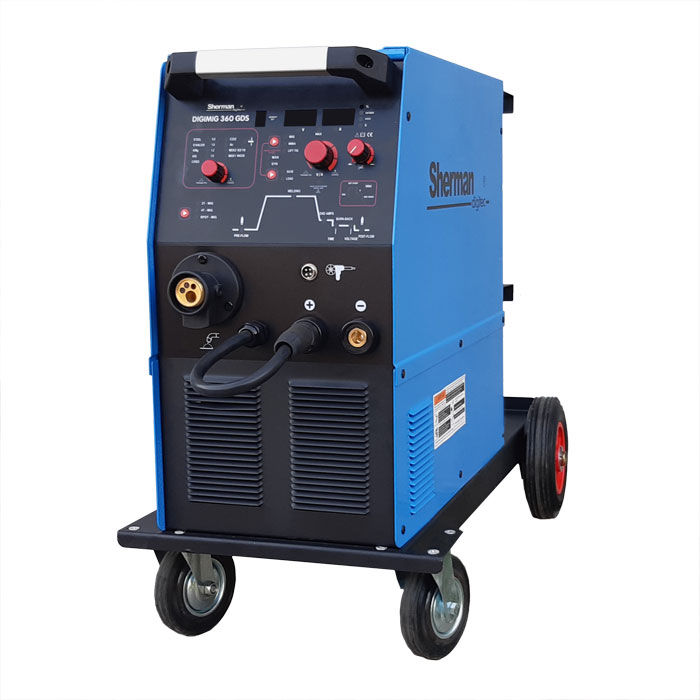

Synergic inverter welding machine DIGIMIG 360GDS


The synergistic DIGIMIG 360GDS welder is used for manual welding of steel and non-ferrous metals. It enables welding with MMA (coated electrode), TIG Lift and MIG / MAG methods.


The MIG / MAG method can be used in manual and synergic mode, simplifying its operation and allowing the welding machine to be used by people with less experience and hobbyists. Due to the change of polarity, the device allows MIG / MAG welding with the use of both standard wires in a protective gas shield and self-shielding flux-cored wires.


The welder allows you to connect a Spool Gun (SG) with a mini wire feeder and a D100 spool of steel or colored wire.


During MMA welding, it is possible to adjust the ARC FORCE, HOT START functions and enable / disable the ANTI STICK and VRD functions. During MIG / MAG welding, it is possible to adjust the inductance, gas pre-flow and post-flow, as well as wire burn-back time and voltage.


The welder is used in closed or roofed rooms, not exposed to direct weather conditions.



TECHNICAL DATA:

    • Catalog number: 7812431
    • Supply voltage [V]: AC 400 50Hz
    • Welding methods:  MIG, MMA, Lift TIG, braze welding
    • Technology of: IGBT
    • Welding current [A]:  MIG: 360, MMA: 360, TIG: 360
    • Work cycle [%]: 60
    • Max. current consumption [A]: 20.2 (MIG) / 21.7 (MMA) / 15.4 (TIG)
    • Max. power consumption [KVA:  14 (MIG) / 15.1 (MMA) / 10.6 (TIG)
    • Adjust the welding current:  Liquid
    • Avg. Spool with wire [mm]: 200, 300
    • Rev.. Wire feed [m / min]:  1.5 - 24
    • Mass [kg]: 80
    • Dimensions (L x W x H) [mm]: 928 x 427 x 712


FUNCTIONS:

    • Digital control,
    • Arc Force,
    • Hot Start,
    • 2T / 4T,
    • VRD,
    • TIG Lift,
    • Upslope,
    • Downslope,
    • Inductance regulation,
    • Gas pre-flow and post-flow time adjustment,
    • Welding without gas,
    • 4-roll feeder,
    • Spool Gun option,
    • Manual MIG,
    • MMA,
    • TIG Lift,
    • Welding without gas,
    • Spot welding



Equipment:

    •    Sherman DIGIMIG 360GDS
    •    Welding holder Tecweld TW-36 / 4m
    •    Mass cable
    •    User manual in Polish language (English version available on request.
    •    Warranty card confirming 2 years warranty service for end customers (1 year for businesses)
