Sherman DIGITIG 200 AC / DC MULTIPULSE inverter welder + Foot Pedal

The
 DIGITIG 200 AC / DC MULTIPULSE welding machine is a device of the
latest generation, made in IGBT technology and equipped with digital
control. It is used for manual TIG welding of steel and non-ferrous metals with direct and alternating current. It also has the option of MMA welding (with a coated electrode).


The
 device enables full digital regulation and control of the welding
parameters of the arc and pulse characteristics as well as the choice of
 the AC waveform. It has HF ignition, the ability to control in two-stroke and four-stroke modes and spot welding. It is also possible to save 20 sets of pulse and welding current parameter settings. During MMA welding, it is possible to adjust the ARC FORCE and HOT START functions.


The set includes a TIG welding torch with adjustable welding current in the handle, an electrode cable and a return cable.


TECHNICAL DATA:

    • Catalogue code: 7812422
    • Supply voltage [V]: AC 230 50Hz
    • Welding methods: TIG AC / DC, MMA
    • The technology: IGBT
    • Welding current [A]: MMA: 180, TIG DC: 200, TIG AC: 200
    • Duty cyclle [%]: 60
    • Tension without load. [V]: 67
    • Max. current consumption [A]: MMA: 26.6, TIG: 18.6
    • Max. power consumption [KVA]: MMA: 5.7, TIG: 4.1
    • Adjust welding current: Liquid
    • Gas pre-flow [s]: 0.1-15
    • Gas post flow [s]: 0.1-15
    • Rising current [s]: 0-15
    • The current will drop [s]: 0-15
    • Initial current [A]: 5-200
    • Base current [A]: 5-200
    • Crater current [A]: 5-200
    • Pulse frequency [Hz]: 0.5-999
    • Pulse duration [%]: 10-90
    • AC balance [%]: 15-50
    • ARC FORCE [A]: 0-100
    • Weight [kg]: 15
    • Dimensions (D x W x H) [mm]:  510 x 210 x 380


FUNCTIONS:

    • Digital control,
    • HF,
    • Arc Force,
    • Hot Start,
    • 2T / 4T,
    • Ramp current,
    • Pulse,
    • Gas pre and post flow time adjustment,
    • Electrode cleaning function,
    • AC welding, Preset memory,
    • Spot welding

Equipment:

    Sherman DIGITIG 200 AC/DC MULTIPULSE welder inverter with 2 pin EU style plug
    Welding torch T-26 with regulation

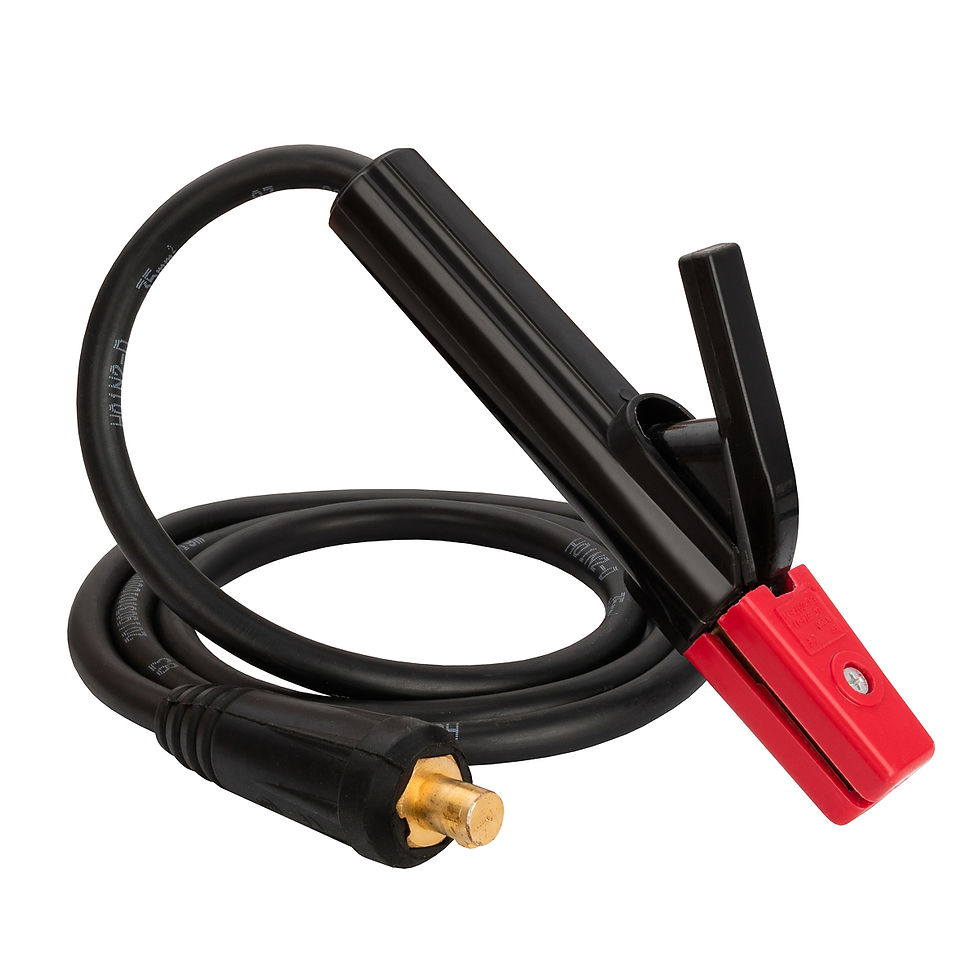

    Electrode cable
    Mass cable
    Foot pedal controller
    Manual in Polish, English version available on request
    Warranty card (2 years for end customers / 1 year for businesses)
Please note that the machine includes European/Continental plug, you need to arrange the UK one
