DIGITIG 200DC inverter welder SET + FOOT PEDAL


The DIGITIG 200DC welder is a digitally controlled device made in the latest generation of IGBT technology, designed for professional use. It is used for manual welding with direct current using the TIG HF and TIG LIFT methods and has an extensive MMA welding option.


The welder enables full digital adjustment and control of the welding parameters of the arc and pulse characteristics in the TIG method and control of the VRD, ARC FORCE and HOT START functions in the MMA method. The device works in 2T / 4T mode and has separate displays showing the welding current and memory sets.

The welder has the memory of the last settings, i.e. after turning it off and on again, the last set parameters are restored. In addition, it has the ability to remember 30 sets of settings. The set includes a TIG welding torch, electrode cable and ground cable.


TECHNICAL DATA:

    • Catalogue code: SDIGITECDIGITIG200DCSETPED
    • Supply voltage [V]: AC 230 50Hz
    • Welding methods: TIG HF, TIG LIFT, MMA
    • The technology: IGBT
    • Welding current [A]: MMA: 180, TIG: 200
    • Duty cyclle [%]: 40
    • Tension without load. [V]: 20V (VRD) / 59
    • Max. current consumption [A]: MMA: 36.5, TIG 26.8
    • Max. power consumption [KVA]: MMA: 6.5, TIG: 4.1
    • Adjust welding current: Liquid
    • Gas post flow [s]: 0.1-1
    • Gas post flow [s]: 0-15
    • Rising current [s]: 0-15
    • The current will drop [s]: 0-25
    • Initial current [A]: 5-200
    • Base current [A]: 5 - 95%
    • Crater current [A]: 5-200
    • Pulse frequency [Hz]: 0.5-200
    • Pulse duration [%]: 10-90
    • ARC FORCE [A]: 0-10
    • Weight [kg]: 9
    • Dimensions (D x W x H) [mm]: 415 x 165 x 320


FUNCTIONS:

    • Digital control,
    • HF,
    • Arc Force,
    • Hot Start,
    • 2T / 4T,
    • VRD,
    • TIG Lift,
    • Upslope,
    • Downslope,
    • Pulse,
    • Gas pre-flow and post-flow time adjustment,
    • Parameter display,
    • 30 settings memory,
    • Memory display,
    • TIG Lift

Equipment:
Sherman DIGITIG 200DC welder inverter with 2 pin EU style plug
Welding torch Tecweld T-26 / 4m Ergo Digitec 3p
Ground wire with a clamp

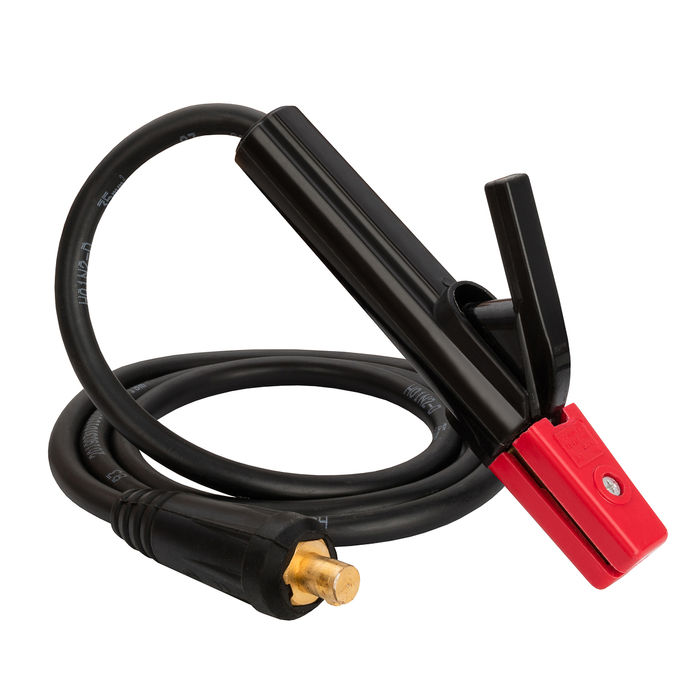

Electrode wire with electrode holder
Tig torch consumables (tip, nozzle, colette)
Hose
Foot pedal controller
Manual in Polish, English version available on request
Warranty card (2 years for end customers / 1 year for businesses)


Please note that the machine includes European/Continental plug, you need to arrange the UK one.
