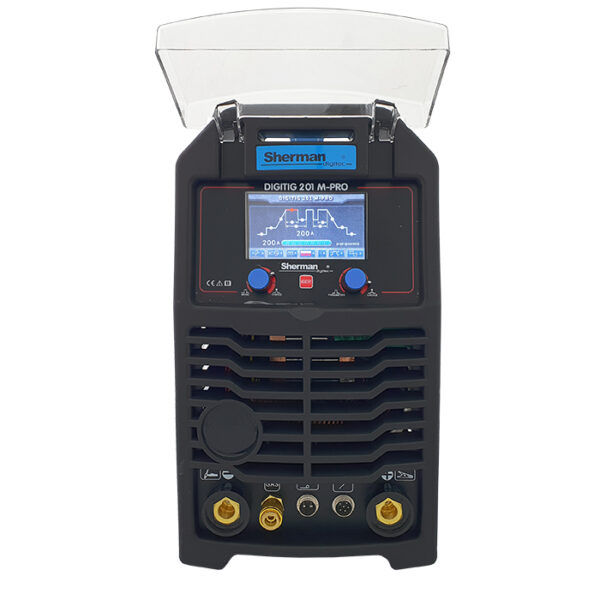

The Sherman DIGITIG 201 M-PRO welder is used for manual DC and AC welding of carbon and stainless steels and non-ferrous metals. It is capable of MMA (shielded electrode), TIG HF and TIG Lift welding. It is equipped with theCold Welding function, which enables welding of thin workpieces thanks to very low heat emission in the joining zone.
The digital control allows full digital adjustment and control of welding parameters of arc and pulse characteristics as well as selection of AC current waveform.
The machine has the ability to store 10 sets of welding parameters for each welding method.
The welder is equipped with a colour LCD display with a selectable menu in 8 languages, including Polish, English, German, French and Spanish.
The set includes a TIG welding handle with control in the handle, electrode cable and ground cable.
Technical specifications:
Order number 7812714
EAN code 5903686618246
Welding methods MMA AC, TIG Lift (by rubbing) AC, MMA DC, TIG HF AC, TIG HF DC, TIG Lift (by rubbing) DC, COLD TIG
Supply voltage [V] AC 230
IGBT welding technology
Max MMA welding current [A] 180
Max TIG AC welding current [A] 200
Max welding current TIG DC [A] 200
Duty cycle MMA [%] 60
TIG duty cycle [%] 60
No-load voltage [V] 67
Current ramp-up time [s] 0 - 15
Initial current [A] 5 - 200
Base current [A] 5 - 200
Current falling time [s] 0 - 15
Crater current [A] 5 - 200
Gas pre-charge [s] 0. 1 - 15
TIG gas post flow [s] 0. 1 - 15
TIG pulse frequency [Hz] 0. 5 - 999
TIG pulse width [%] 10 - 90
AC frequency [Hz] 1 - 250
AC balance [%] 15 - 50
TIG spot welding time [s] 0. 02-9.9, 0.1-15
TIG spot welding interval [s] 0. 2-9.9
Max power consumption MMA [kVA} 5,7
Max TIG power input [kVA] 4. 1
Max MMA current draw [A] 26.6
Max TIG current draw [A] 19.6
Main TIG method
Functions 2T/4T, Arc Force, Electrode cleaning function, Hot Start, Current ramp-up, Current ramp-down, Setting memory, TIG gas ramp-up, Gas pre-flow, TIG pulse, Digital control, VRD, Language selection, AC waveform selection, LCD display, Cold TIG
Mains protection [A] 25
Warranty period for companies [years] 1
Serial number Yes
Weight [kg] 15
Dimensions (L x W x H) [cm] 51 x 21 x 38
EQUIPMENT INCLUDED
Sherman DIGITIG 201 M-PRO welding machine
Adjustable TIG welding gun T-26
Mass cable
Packaging
Instruction manual in Polish (English version available on request)
OPTIONAL EQUIPMENT
CP9 control pedal DIGITIG 201 M-PRO, DIGITIG 200 AC/DC MULTIPULSE version 3 and higher, DIGITIG 315 AC/DC MULTIPULSE
