DIGITIG 204 QUATTRO welder with a plasma cutter

The DIGITIG 204 QUATTRO welder is used for manual TIG HF and MMA (covered electrode) welding of steel and non-ferrous metals with direct current with the possibility of using current pulsations. It also enables plasma cutting of steel, aluminum and copper sheets and elements. It is equipped with a cold welding function that allows joining thin elements, thanks to very low heat emission in the joining zone.

Digital control allows for full adjustment and control of the welding parameters of the arc and pulse characteristics. Thanks to the use of the Fan Stop function, which turns off the fan at low load on the welding machine, the noise level has been significantly reduced.

The set includes a TIG welding torch, a PT-31 plasma cutting torch, an electrode cable, a mass cable and an external air preparation unit for plasma cutting.

TECHNICAL DATA:

Catalog number 7812713
Welding/cutting/other methods MMA DC, TIG HF DC, COLD TIG, NO HF plasma cutting
Supply voltage [V] AC 230
IGBT manufacturing technology
Max MMA welding current [A] 180
Max TIG DC welding current [A] 200
Max cutting current [A] 50
max. cutting thickness [mm] 12
MMA duty cycle [%] 25
TIG duty cycle [%] 60
Plasma cutting duty cycle [%] 35
No-load voltage [V] 68
Current rise time [s] 0 – 15
Initial current [A] 10-200
Base current [A] 10-200
Current fall time [s] 0-15
Crater current [A] 10-200
Gas pre-flow [s] 0 – 2
TIG gas post-flow [s] 1 – 15
TIG pulse frequency [Hz] 0.5 - 200
TIG pulse width [%] 10-90
Max power consumption MMA [kVA} 5.8
Max TIG power consumption [kVA] 4.3
Max power consumption plasma [kVA] 5.3
Max current consumption MMA [A] 29
Max TIG power consumption [A] 21
Max current consumption plasma [A] 30
Air flow [m³/min] 0.2
Main TIG method
Functions 2T/4T, Current upslope, Current downslope, TIG gas post-flow, Gas pre-flow, MMA pulse, TIG pulse, Digital control, VRD, LED display
Network protection [A] 16
Warranty period for companies [years] 1
Weight [kg] 8.5
Dimensions (L x W x H) [cm] 43 x 17 x 31

EQUIPMENT INCLUDED
TIG-17 welding torch for DIGITIG 204 QUATTRO 4m
PT-31 plasma torch for DIGITIG 204 QUATTRO 4m
Air preparation team

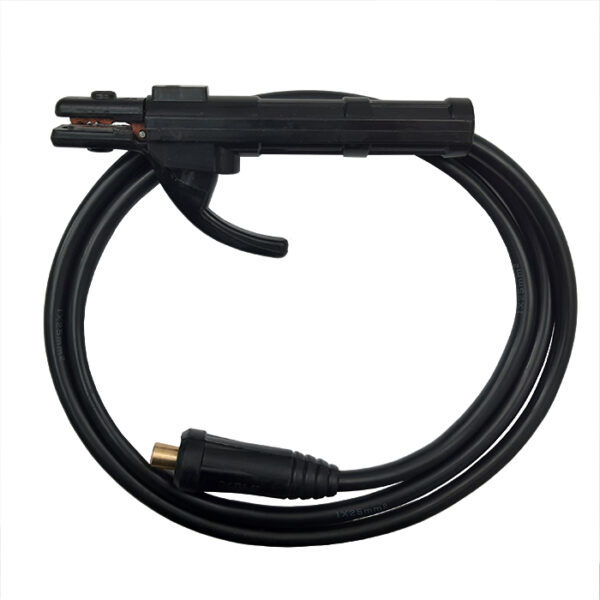

electrode wire
Ground cable
