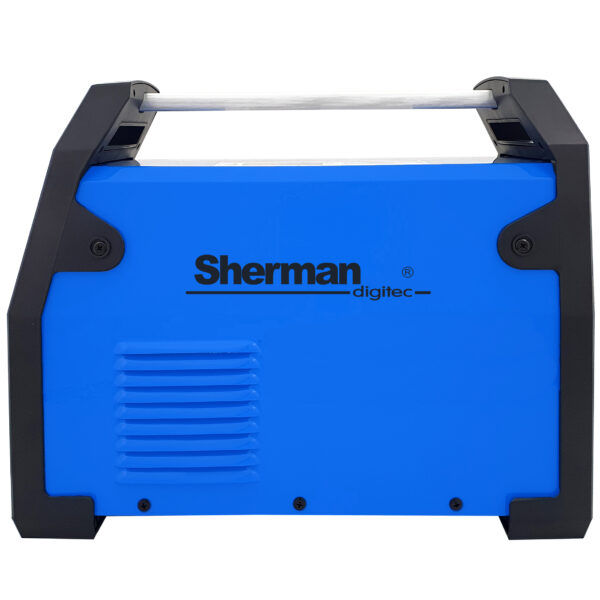

Sherman DIGITIG 208 DC MULTI digital welder - precision and reliability with IGBT technology

The Sherman DIGITIG 208 DC MULTI is a state-of-the-art digital welder, designed with advanced IGBT technology and full digital control. The machine is designed for DC TIG HF and TIG Lift welding, enabling precision joining of steel and non-ferrous metals. In addition, it offers a shielded electrode welding (MMA) function, making it a versatile tool in a professional working environment.

The welder provides full control of process parameters - from arc characteristics to pulse settings - through an intuitive digital interface. The ability to save up to 10 sets of welding parameters allows you to quickly switch between tasks and increases productivity.

The welder is equipped with a range of features to assist the welder:

Fan Stop - intelligent fan control that reduces noise and energy consumption,
Hot Start - facilitates arc ignition when starting MMA welding,
Arc Force - stabilises the arc and improves weld quality,
VRD (Voltage Reduction Device) - increases operating safety by reducing the idle voltage.

The unit is designed for use in enclosed or covered conditions, excluding exposure to direct weather.



Technical specifications:

Part number 719519
EAN code 5903686619519
Welding methods/cutting/other MMA DC, TIG HF DC, TIG Lift (by rubbing) DC
Supply voltage [V] AC 230
 IGBT technology
Max MMA welding current [A] 160
Max welding current TIG DC [A] 200
Duty cycle MMA [%] 60
TIG duty cycle [%] 60
No-load voltage [V] 21 (VRD) / 70
Gas pre-charge [s] 0. 1 - 3
Current ramp-up time [s] 0 - 15
Inception current [A]  10 - 200
Base current [A] 5 - 95 % of welding current
Current sink time [s] 0 - 25
Crater current [A] 10 - 200
TIG gas flow [s] 1 - 15
TIG pulse frequency [Hz] 0. 5 - 200
TIG pulse width [%]  10 - 90
TIG spot welding time [s] 0. 1 - 20
Max MMA current consumption [A] 36.2
Max TIG current consumption [A] 33.7
Main TIG method
Functions 2T/4T, Arc Force, Fan Stop, Hot Start, Current ramp-up, Current ramp-down, Setting memory, TIG gas ramp-up, Gas pre-flow, TIG pulse, Digital control, VRD, LED display, TIG spot welding
Warranty period for companies [years] 1
Mains fuse [A] 25
Weight [kg] 6. 4
Dimensions (L x H x W) [cm] 37 x 19.5 x 34.5

EQUIPMENT INCLUDED:

DIGIMIG 215 DUALPULSE 4R welding machine

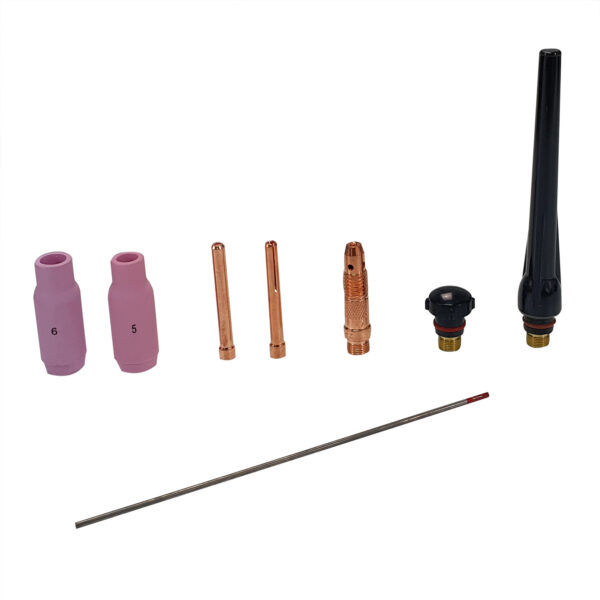

Welding gun T17/4m
Mass cable
Electrode cable
Packaging
Instruction manual in Polish (English version available on request)

optional accessories

CP2 control pedal (FP-2) - DIGITIG pulse ACDC 200GD-315GD 200LCD AC/DC
