Inverter welder DIGITIG 212 COLD

The digital welder DIGITIG 212 COLD is the latest generation device, designed for professional use. It is made in IGBT technology and equipped with digital control. It is used for manual TIG welding of steel and non-ferrous metals. The device is equipped with the option of MMA welding (coated electrode).

The device enables full digital regulation and control of the welding parameters of the arc characteristics. It is equipped with a cold welding function that enables the bonding of thin elements, thanks to a very low heat emission in the joining zone. In addition, it has HF ignition, HOT START and ARC FORCE functions, 2T / 4T switch and welding current display. The set includes a TIG welding torch, electrode cable and ground cable.

TECHNICAL DATA:

• Order number: 7812679

• Supply voltage [V]: AC 230 50Hz

• Welding methods: TIG DC, MMA

• Manufacturing technology: IGBT

• Welding current [A]: MMA: 180, TIG: 200

• Duty cycle [%]: 60

• Tension in the state without load. [V]: 67

• Max. current consumption [A]: MMA: 38, TIG: 26

• Max. power consumption [kVA]: MMA: 7.2, TIG: 5.3

• Welding current control: Smooth

• Gas pre-flow [s]: ---

• Gas post flow [s]: 0-15

• Slope of current [s]: ---

• Current dropping [s]: 0-15

• Initial current [A]: ---

• Base current [A]: ---

• Crater current [A]: ---

• Pulse frequency [Hz]: ---

• Pulse duration [%]: ---

• AC frequency [Hz]: ---

• AC balance [%]: ---

• Current amplitude [%]: ---

• ARC FORCE [A]: 0-100

• Weight [kg]: 7.3

• Dimensions (L x W x H) [mm]: 430 x 170 × 310

Functions:

• Digital control,

• HF,

• Hot Start,

• 2T / 4T,

• VRD,

• Current drop,

• Parameter display,

• Gas post flow time adjustment

EQUIPMENT:

• Welding holder T-17 / 4m

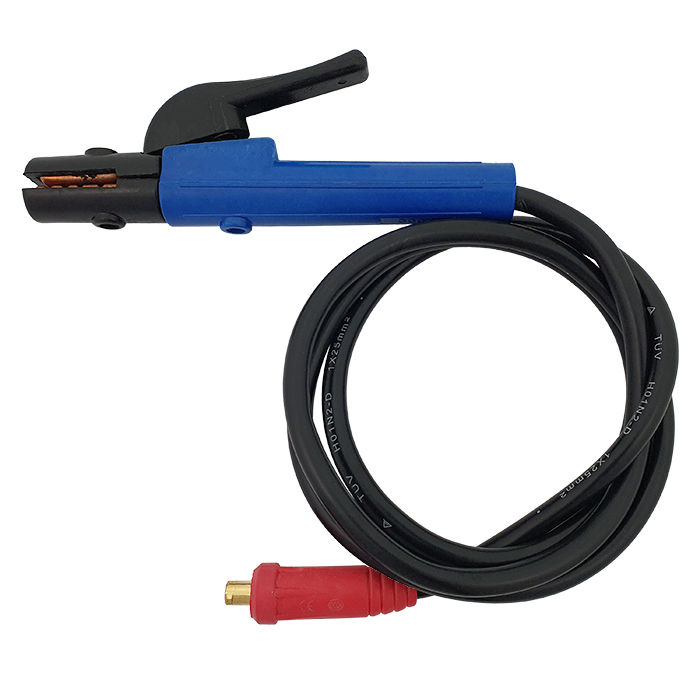

• Electrode cable

• Mass cable
