The Sherman DIGITIG 214 CLEAN welder is used for manual welding of structural steels with covered electrodes ( MMA method) and quality steels, copper and copper alloys with an inert gas shielded non-fusible electrode ( TIG method). The welder has the possibility of pulse welding with full adjustment of its parameters. It also allows so-calledcold TIG welding, which enables the welding of thin workpieces thanks to very low heat emission in the joining zone. The machine has an electrochemical cleaning function for stainless steel welds by removing oxidised weld layers and discolouration. This eliminates the need for etching and polishing of welds.
The welder is equipped with Arc Force, Hot Start and VRD functions, has 2T/4T control and setting memory
It comes complete with TIG welding chuck, electrode cable, mass cable. electrochemical cleaning handle and cleaner.
Technical specifications:
Part number 7812802
EAN code 5903686618406
Welding methods MMA DC, TIG HF DC, TIG Lift (by rubbing) DC, COLD TIG, weld cleaning
Supply voltage [V] AC 230
IGBT welding technology
Max MMA welding current [A] 180
Max TIG DC welding current [A] 200
Duty cycle MMA [%] 60
TIG duty cycle [%] 60
No-load voltage [V] 65
Current ramp-up time [s] 0 - 15
Inception current [A] 10 - 100%
Base current [A] 10-100% of welding current
Current decreasing time [s] 0 - 15
Crater current [A] 10-100% of welding current
Gas pre-charge [s] 0. 1 - 15
TIG gas postflow [s] 0. 5 - 15
TIG pulse frequency [Hz] 0. 2 - 500
TIG pulse width [%] 10 - 90, 1 - 99
TIG spot welding time [s] 0 .01 - 1
TIG spot welding interval [s] 0 - 10
Max power consumption MMA [kVA} 7,2
Max power consumption TIG [kVA] 5. 3
Max MMA current draw [A] 38
Max TIG current consumption [A] 31
Main TIG method
Functions 2T/4T, Arc Force, Hot Start, Current ramp-up, Current ramp-down, Setting memory, TIG gas flow, Pre-flow, TIG pulse, Digital control, VRD, LED display, Cold TIG
Mains protection [A] 25
Warranty period for companies [years] 2
Weight [kg] 7. 3
Dimensions (L x W x H) [cm] 43 x 17 x 31
EQUIPMENT INCLUDED:

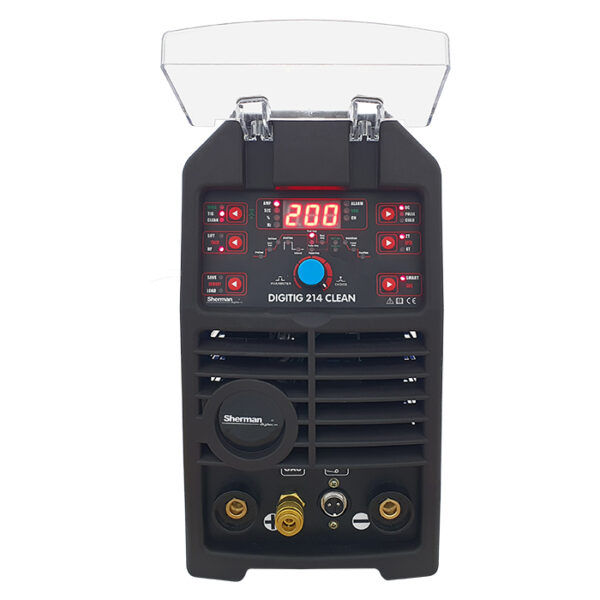

Sherman DIGITIG 214 CLEAN welding machine
TIG welding gun T-17/4m
Electrode holder
Cleaning handle

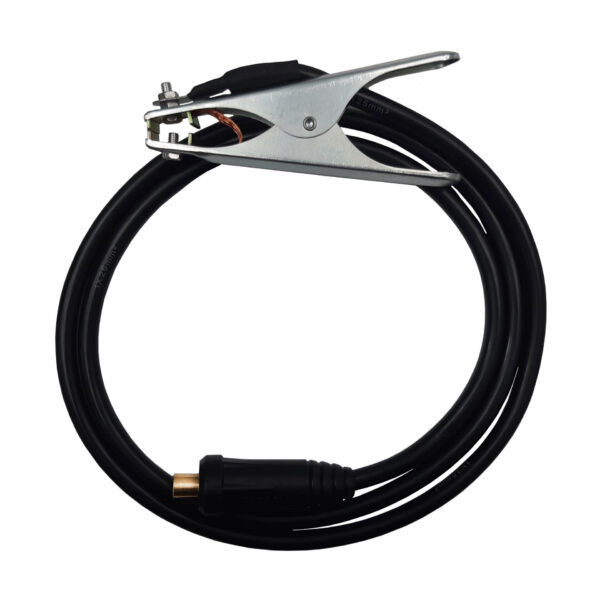

Mass cable
Packaging
Instruction manual in Polish (English version available on request)
