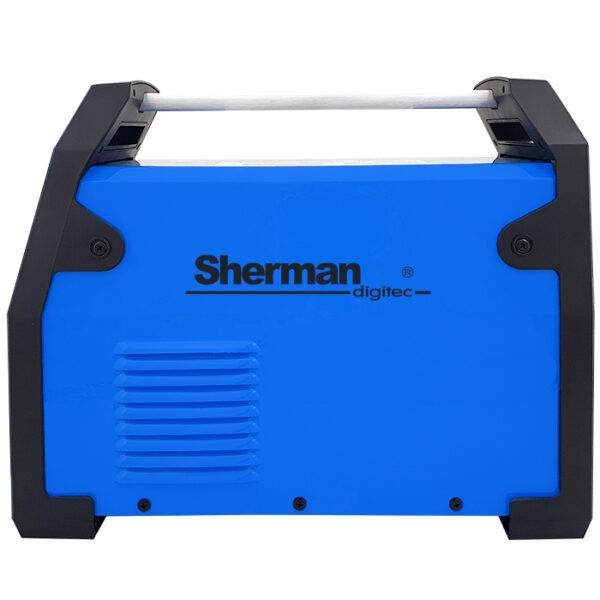

The Sherman DIGITIG 218 AC/DC MULTIWAVE is used for manual TIG HF and TIG Lift welding of steel, aluminium and other non-ferrous metals with direct and alternating current. The machine is equipped with the option of MMA (Metal Metal Metal electrode) welding.
The welder allows full digital adjustment and control of welding parameters of arc and pulse characteristics, as well as selection of the AC current waveform.
The machine has the ability to store 10 sets of welding parameters. In addition, it is equipped with Hot Start, Arc Force, VRD and 2T/4T functions. The welder also allows spot welding.
Thanks to the Fan Stop function, which switches off the fan when the welder is at low load, the noise level is significantly reduced. The protective gas connection allows the use of an R21 quick connector, which makes it easier and quicker to change the shielding gas.
The device is designed for use indoors or in covered areas, not exposed to direct weather influence.
The set includes: TIG T-17 4m handle, electrode cable, ground cable.
Technical specifications:
Order number 7813079
EAN code 5903686619120
Welding methods TIG Lift (by rubbing) AC, MMA DC, TIG HF AC, TIG HF DC, TIG Lift (by rubbing) DC
Supply voltage [V] AC 230
IGBT welding technology
Max MMA welding current [A] 160
Max welding current TIG AC [A] 200
Max welding current TIG DC [A] 200
Duty cycle MMA [%] 60
TIG duty cycle [%] 60
No-load voltage [V] 60
Gas preflow [s] 0. 1 - 3
Current rise time [s] 1 - 15
Inception current [A] 10 - 200
Base current [A] 5 - 95 % of welding current
Current sink time [s] 0 - 25
Crater current [A] 10 - 200
TIG gas flow [s] 1 - 15
TIG pulse frequency [Hz] 0. 5 - 200
TIG pulse width [%] 10-90
AC frequency [Hz] 20 - 300
AC balance [%] 20 - 80
TIG spot welding time [s] 0. 1 - 20
Max MMA current consumption [A] 31.4
Max TIG current consumption [A] 30.2
Main TIG method
Functions 2T/4T, Arc Force, Fan Stop, Electrode cleaning function, Hot Start, Current ramp-up, Current ramp-down, Setting memory, TIG gas flow, Pre-flow, TIG pulse, Digital control, VRD, AC waveform selection, LED display, TIG spot welding
Warranty period for companies [years] 1
Mains fuse [A] 16
Weight [kg] 8. 8
Dimensions (L x H x W) [cm] 42 x 19 x 34
EQUIPMENT INCLUDED:
Sherman DIGITIG 218 AC/DC MULTIWAVE welding machine
TIG welding gun T-17 X35
Mass cable
Packaging
Instruction manual in Polish (English version available on request)
optional equipment
CP2 control pedal (FP-2) - DIGITIG pulse ACDC 200GD-315GD 200LCD AC/DC
