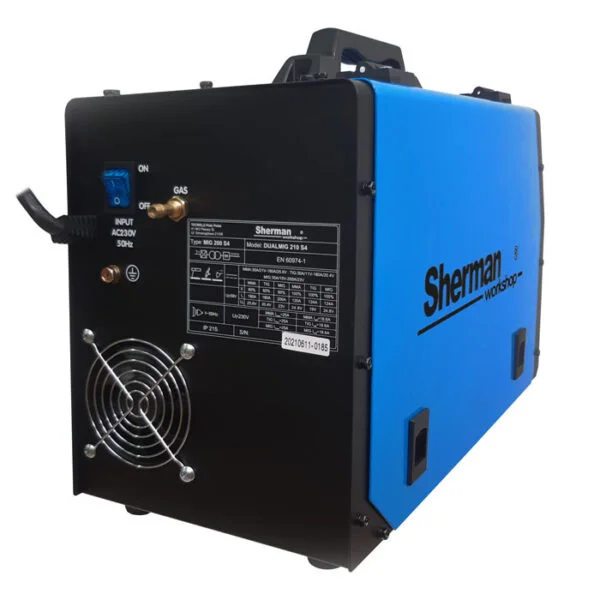

Sherman DUALMIG Inverter welder 210 S4 MIG / MAG, Stick and TIG Lift IGBT

This is semi-automatic welder DUALMIG 210 S4  which is used for manual welding of steel and non-ferrous metals.

Allows MIG / MAG, MMA (coated electrode) and Lift TIG. It can also be used to braze thin (3mm) galvanized sheets. By changing the polarization unit can be welded by MIG / MAG welding with the use of standard wire in the protective gases and the self-shielded flux cored wires.

Welding is used in closed or covered, if this directly exposed weathering. DUALMIG 210 S4 cooperates with the D100 wire spools (1kg) and the D200 (5kg).

The device Enables welding in mode 2 or 4 pulse and an adjustable inductor is used at the braze and regulation of penetration during welding.

The device is equipped with a two-roller wire feed with a continuously adjustable feeding speed MIG welding torch, the wire electrode and the ground wire with a clamp.

TECHNICAL DATA:

• Catalog number:  7811699

• Supply voltage [V]: 50Hz AC 230

• Welding methods: MIG, Stick and TIG Lift

• Technology of: IGBT

• Welding current [A]: 200

• Duty Cycle [%]: 60

• Max. current consumption [A]:  25

• Max. power consumption [KVA]:  8.5

• Adjust the welding current:  Liquid

• Avg. Spool with wire [mm]:  100, 200

• Rev .. Wire feed [m / min]:  1.5 - 13

• Mass [kg]:  11.5

• Dimensions (L x W x H) [mm]: 450 x 210 x 305

• Functions:  2T / 4T control inductance, without welding the gas feed 2-roll

Equipment:     •    Sherman DUALMIG 210 S4 welder machine with 2pin EU style plug     •    the welding TW-15 / 3m     •    wire electrode     •    earth wire     •    User manual in Polish language (English version available on request.     •    Warranty card confirming 2 years warranty service for end customers (1 year for businesses)

Please note that the inverter includes European/Continental style 2 pin plug.
