The Sherman Synergy MIG 180 Easywork semi-automatic welder is an easy-to-use machine for manual welding of steel and non-ferrous metals. The machine can be used for MMA, TIG and MIG/MAG welding. When welding with the MIG/MAG method, the welder operates in synergy mode. Simply set the welding current and the synergy programme selects the wire feed speed. If necessary, it is possible to correct the welding voltage. Thanks to the change of polarity, the device allows welding with both standard shielded gas wires and self-shielded powder wires. The welder is suitable for use in enclosed or covered areas not exposed to direct weathering. MIG 180 EASYWORK works with D100 (1kg) wire reels. A ground wire, electrode wire and integrated MIG holder are included.


Technical specifications:

Catalogue number 7812937
EAN code 5903686610981
Welding/cutting/other methods MIG/MAG, MMA DC, TIG Lift (by rubbing) DC
Supply voltage [V] AC 230
Design technology IGBT
Max MMA welding current [A] 160
Max TIG DC welding current [A] 160
Max MIG/MAG welding current [A]     180
MMA duty cycle [%] 60
TIG duty cycle [%] 60
MIG/MAG duty cycle [%] 60
No-load voltage [V] 59
MIG welding voltage [V] 15 - 24
Max MMA power consumption [kVA}     5.8
Max TIG power input [kVA] 3.6
Max MIG/MAG power input [kVA] 6
Max MMA current input [A] 23
Max TIG current input [A] 6
Max MIG/MAG current input [A] 21
Wed. wire spool ø [mm] 100
Reel dimensions [mm] 28×8 (7×7)
Main method MIG/MAG

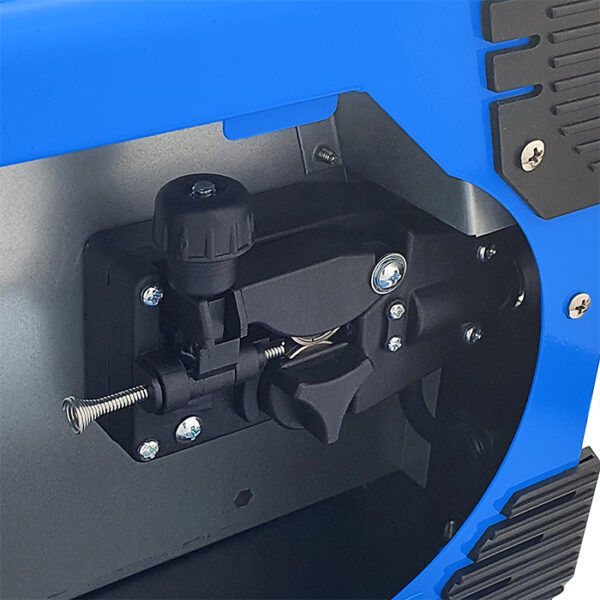

Features 2-roller feeder, Gasless welding, Digital control, Synergy carbon steel, VRD, LED display, Synergy self-consuming wire
Mains protection [A] 16
Corporate warranty period [years] 1
Weight [kg] 8.1
Dimensions (L x H x W) [cm]:     32.5 x 15.5 x 28

Welding set includes:
Sherman MIG 180 Easywork welder
Welding gun TW-14/2.5m
Electrode cable
Ground cable
Instruction manual in Polish (English version on request)
