The MIG 200M semi-automatic welder is an inverter device made in the MOSFET technology.

It
 is used for manual welding of steel and non-ferrous metals using the
MMA method (coated electrode) and the MIG / MAG method in protective gas
 or self-shielding wire without the use of protective gases.
It can also be used for braze welding of thin (up to 3mm) galvanized sheets. It is used in closed or roofed rooms, not exposed to direct weather conditions.

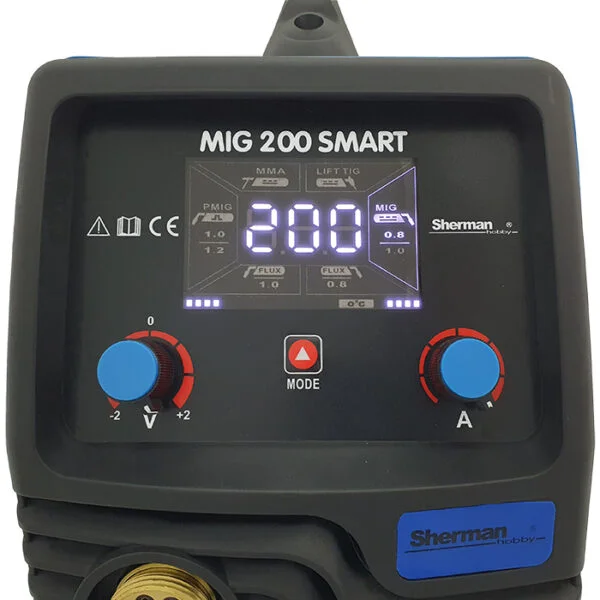

The device has displays for welding current and voltage, smooth
adjustment of welding voltage / current, wire feed speed and inductance.
 In MMA welding, it enables the use of the ARC FORCE function. Works with D200 wire spools (5 kg).

It is powered from a single-phase 230V 50Hz network. The

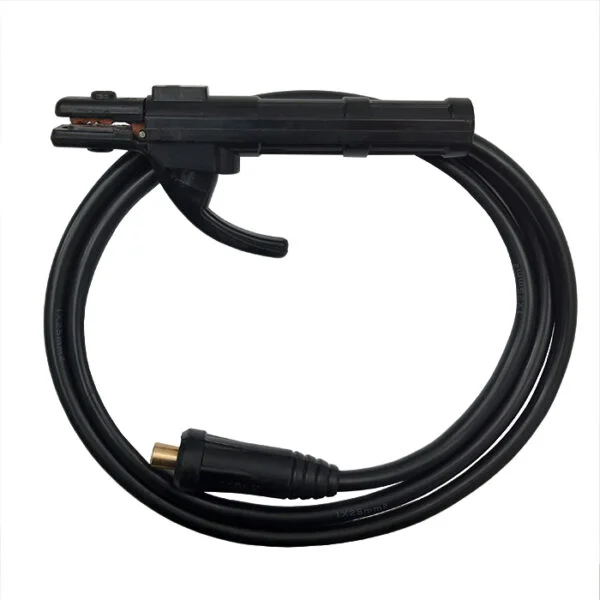

 set includes: a welding holder for MIG / MAG welding 3m, a cable with a
 3m electrode holder, a ground cable with a clamp 3m and an additional
0.8 / 1.0 roll for aluminum welding.

Optionally,
it is possible to parallel connect a second bracket type Spoolgun which is
mounted at the mini feeder and D100 wire spool of steel wire or color, so you
can weld two different wire welding without retooling. This solution saves time
when the need for welding different materials or different thicknesses up
casual use of wires.

TECHNICAL DATA:

    • Catalogue code: SINW-MIG200M
    • Supply voltage [V]: 230 AC 50Hz
    • Welding methods: MIG, MMA, brazing
    • The technology: MOSFET
    • Welding current [A]: 200
    • Duty cycle [%]: 60
    • Max. current consumption [A]: 37.4
    • Max. power consumption [KVA]: 8.8
    • Adjust welding current: Liquid
    • Avg. a spool of wire [mm]: 200
    • Of speed. Wire feed [m / min]: 1.5 - 19
    • Weight [kg]: 21
    • Dimensions (D x W x H) [mm]: 500 x 260 x 540
    • Functions: Arc Force, adjustment inductance welding without gas, Tray 2-roll option Spool Gun

Equipment:


    Sherman MIG 200M welder inverter with 2 pin EU style plug
    Welding Gun TW-15/3m
    Wire electrode
    Earth clamp
    Welding shield
    Hammer brush
    Manual in Polish, English version available on request
    Warranty card (2 years for end customers / 1 year for businesses)


Please note that the machine includes European/Continental plug, you need to arrange the UK one.
