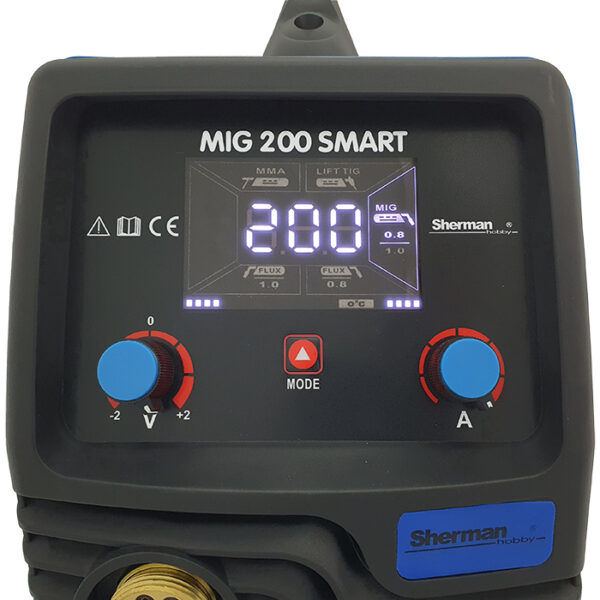

The Sherman MIG 200 SMART synergy welder is used for manual welding of steel. It is a very easy-to-use machine, which allows welding with MMA (covered electrode), TIG Lift, and MIG/MAG methods in synergy mode. Thanks to the change of polarity, the device allows MIG/MAG welding with both standard shielded wires and self-consuming powdered wires.

The welder allows the connection of a Spool Gun type holder with a mini wire feeder mounted in it and a D100 spool of steel or coloured wire. A built-in synergy circuit allows less experienced users to select welding parameters.

The machine is made with IGBT technology, allowing a significant reduction in the weight and size of the welder and an increase in productivity while reducing energy consumption. The welder is equipped with castors and a shelf for the gas cylinder, making it easy to transport and use.

The welder is used indoors or in covered areas not exposed to direct weather.

Technical Specifications:

Catalogue number 7813296
EAN code 5903686620430
Welding/cutting/other methods MIG/MAG, MMA DC, TIG Lift (by rubbing) DC
Supply voltage [V] AC 230
Design technology IGBT
Max MMA welding current [A] 200
Max TIG DC welding current [A] 200
Max welding current MIG/MAG [A] 200
MMA duty cycle [%] 60
TIG duty cycle [%] 60
MIG/MAG duty cycle [%] 60
No-load voltage [V] 78
MIG welding voltage [V] 16,5 - 22
Welding voltage correction -2.0 - +2.0
Max power consumption MMA [kVA}     4.6
Max power input TIG [kVA] 4.6
Max power input MIG/MAG [kVA] 4.6
Max power input MMA [A] 23.9
Max power input TIG [A] 14.8
Max power input MIG/MAG [A] 19.9
Diam. wire spool ø [mm] 100, 200
Main method MIG/MAG
Functions Spool Gun option, 2-roller feeder, Gas-free welding, Carbon steel synergy, LED display, Synergy self-consuming wire
Mains protection [A] 20
Corporate warranty period [years] 1
Roll dimensions [mm] 30x10x10
Weight [kg] 12.5
Dimensions (L x H x W) [cm] 43 x 18.5 x 32

EQUIPMENT INCLUDED:
Sherman MIG 200 Smart welder with wheels and shelf
MIG TW-15 holder for DIGIMIG 200 MTM 3m
Electrode cable
Mass cable
Instruction manual in Polish (English version available on request)
