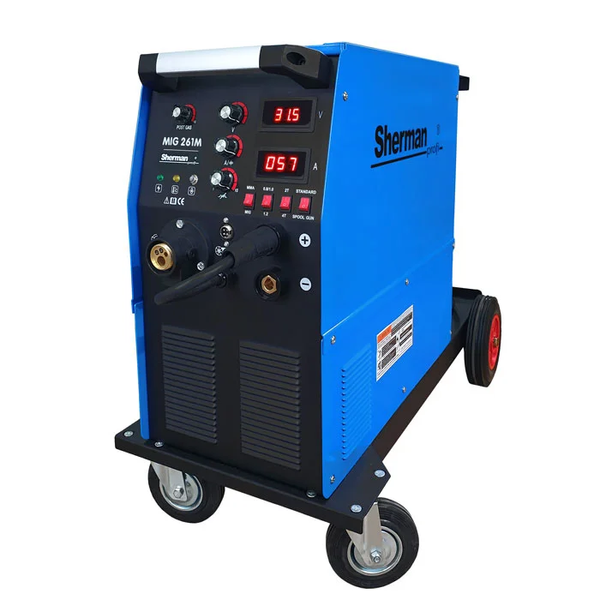

The MIG 261M welder is the second generation equipment made in the IGBT technology.
It is used for manual welding of steel and non-ferrous metals in a protective gas shield (MIG / MAG method) and with a coated electrode (MMA method). It can also be used for gasless welding with flux cored wire. The device also has the option of welding with wires with a spool diameter of 100mm using the Spoolgun holder.
The welder can be powered from both a 230V single-phase network and a 3x400V three-phase network. Detection of the supply voltage is automatic, the device is equipped with a cable adapter. It is equipped with a professional 4-roll wire feeder with smooth regulation of the feed speed. It also has a smooth adjustment of the welding voltage in MIG / MAG welding, and the welding current in the MMA method. The device is equipped with a gas delay control, a 2T / 4T switch and an inductance control useful for welding thin sheets.They are protected against overload by a thermal protection. Works with K-200 (5 kg) and K-300 (15) kg wire spools. The set includes a 4m long MIG TW-25 gun, electrode cable, ground cable with a clamp and a welding shield with a hammer and a brush.
TECHNICAL DATA:
• Catalogue code: SINW-MIG261M
• Supply voltage [V]: AC 230 50Hz, AC 3x400 50Hz
• Welding methods: MIG, MMA
• The technology: IGBT
• Welding current [A]: 250
• Duty cyclle [%]: 60
• Max. current consumption [A]: 30.8 (MIG 230V), 36.5 (MMA 230V), 12.1 (MIG 3x400V), 12.8 (MMA 3x400V)
• Max. power consumption [KVA]: 9.4 kVA (3x400V)
• Adjust welding current: Liquid
• Wed spool with wire [mm]: 200, 300
• Speed wire feed [m / min]: 3 - 18
• Weight [kg]: 59
• Dimensions (D x W x H) [mm]: 930 x 435 x 695
• Functions: 2T / 4T, Inductance adjustment, 4-roll feeder, Spool Gun option, Power 230 / 400V
Equipment:
- Sherman MIG 261M/4R
- Welding torch Tecweld TW-25 / 4m
- Electrode cable
- Mass cable
- Manual in Polish, English version available on request
- Warranty card (2 years for end customers / 1 year for businesses)
