Plasma cutter CUTTER 110

The CUTTER 110 cutter belongs to a new series of devices made in the IGBT 200kHz technology used for air plasma cutting of steel, aluminum and copper sheets and elements. The equipment is recommended mainly for professionals in plants with high use of cutting processes. It is used in closed or roofed rooms, not exposed to direct weather conditions.

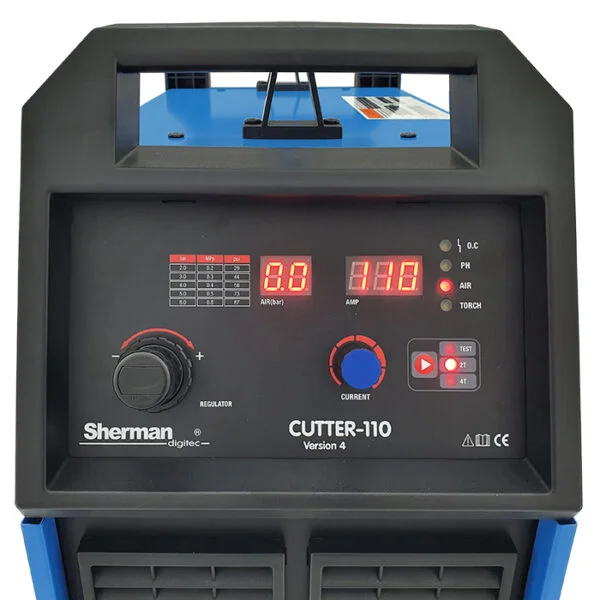

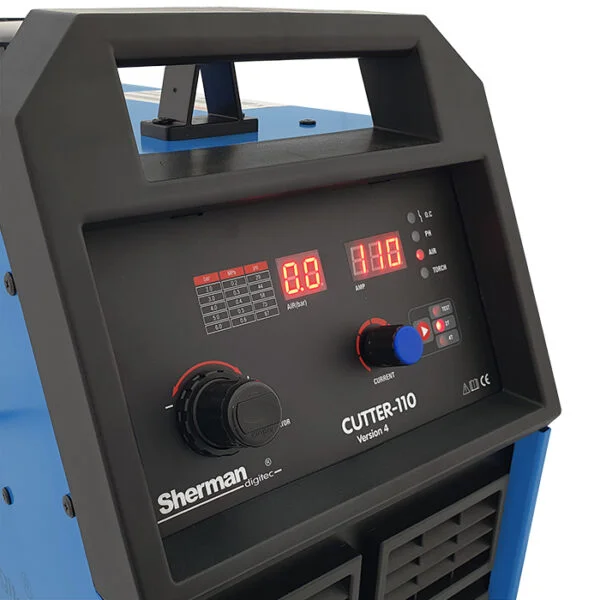

The device has a 6m TRAFIMET handle with HF ionization ignition with a pilot arc and a built-in air preparation unit with a reducer and manometer that allows you to adjust and control the air pressure from the control panel. It is equipped with a 2T / 4T switch and the TEST function for checking and cleaning the air installation.

The set includes a ground cable with a clamp. The list of spare parts for plasma holders is available in the price list.


TECHNICAL DATA:

    • Catalog number:  SINW-CUTTER110
    • Supply voltage [V]: AC 3x400 50Hz
    • Production technology: IGBT
    • Cutting current [A]: 105
    • Duty cycle [%]: 60
    • Max. cutting thickness [mm]: 40
    • Max. current consumption [A]: 24.9
    • Max. power consumption [kVA]: 10
    • Air flow [m 3 / min]: 0.45
    • Ignition method: HF
    • Weight [kg]: 31
    • Dimensions (L x W x H) [mm]: 635 x 455 x 515



FUNCTIONS:

    • HF,
    • 2T / 4T
    • Pilot arc,
    • TEST


Equipment:

        Sherman Plasma cutter CUTTER 110
        Plasma cutting holder A-101 / 6m
        Ground cable
        Welding shield
        Hammer with Brush
        User manual in Polish language
