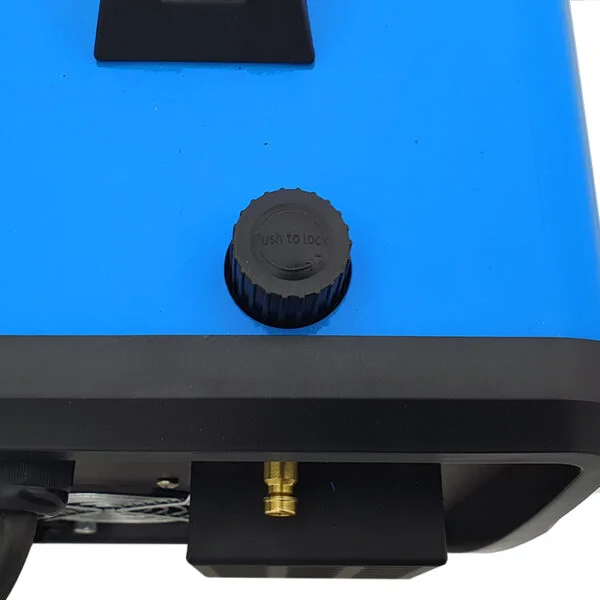

CUTTER 45 AIR plasma cutter with compressor The CUTTER-45 AIR cutter is a modern, digitally controlled device. It is used for air plasma cutting of sheets and elements made of carbon and stainless steel, aluminum and copper. Due to the duality of air supply and small dimensions and weight, it is especially recommended for service work in the field and in craft workshops. CUTTER-45 AIR is equipped with a maintenance-free piston compressor that supplies the cutter with the air necessary for operation. It is also possible to connect an external air compressor. The cutter has a mass cable, a 4 m plasma handle with touch ignition and a built-in air preparation unit with a reducer enabling the regulation and control of air pressure. Technical specification:

• Catalog number 7812702

• EAN code 5903686617676

• Welding/cutting/other NO HF plasma cutting methods

• Supply voltage [V] AC 230

• IGBT manufacturing technology

• Max cutting current [A] 40

• Plasma cutting duty cycle [%] 60

• Max. cutting thickness [mm] 12

• Max current consumption plasma [A] 28.6

• Max power consumption plasma [kVA] 5

• Air flow [m³/min] 0.12

• 2T/4T functions, Digital control, TEST, LED display, Integrated compressor

• Burner type PT-31

• Network security [A] 25

• Warranty period for companies [years] 1

• Weight [kg] 19.5

• Dimensions (L x W x H) [cm] 44.5 x 21.5 x 36

EQUIPMENT INCLUDED:

• Sherman Plasma CUTTER 45 AIR Compressor

• PT-31/4m plasma cutting holder

• Ground cable
