Profi Plasma Cutter 50k with Compressor!

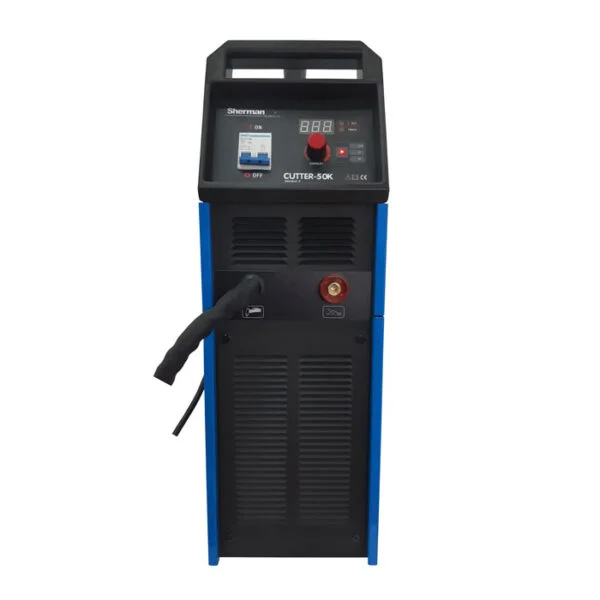

The CUTTER 50K
is a device made in 100kHz MOSFET technology used for air plasma cutting sheet
metal and steel parts, aluminum and copper. It is equipped with
maintenance-free piston compressor that provides power cutter into the air
needed for the job. The main purpose of cutting is repairs, indoor service or
under cover, not directly exposed to atmospheric conditions.

The device
is equipped in 6m handle, standard CEBORA of ionization ignition HF pilot arc.
Built-in air compressor requires no adjustment or pressure control. The set
includes also a ground cable with a clamp, shield, hammer and brush. The list
of spare parts for plasma brackets is available in the price list.

Equipment:

    Sherman Profi Plasma Cutter 50k with
compressor
    Cutting plasma handle CB-50(LT-50)/6m
    Ground cable
    Welding shield
    Hammer with Brush
    User manual in Polish language

TECHNICAL DATA:

    • Catalog number:  SINW-CUTTER50K
    • Supply voltage [V]: AC 230 50Hz
    • Production technology: MOSFET
    • Cutting current [A]: 45
    • Duty cycle [%]: 60
    • Max. cutting thickness [mm]: 12
    • Max. current consumption [A]: 28.6
    • Max. power consumption [kVA]: 6.6
    • Air flow [m 3 / min]: 0.2
    • Ignition method: HF
    • Weight [kg]: 32
    • Dimensions (L x W x H) [mm]: 410 x 205 x 615


FUNCTIONS:

    • HF,
    • Pilot arc,
