Sherman Plasma CUTTER 130

The CUTTER 130 cutter belongs to a new series of devices with digital control, made in the IGBT 200kH technology, used for air plasma cutting of steel, aluminum and copper sheets and elements. The equipment is recommended mainly for professionals in plants with high use of cutting processes. It is used in closed or roofed rooms, not exposed to direct weather conditions.

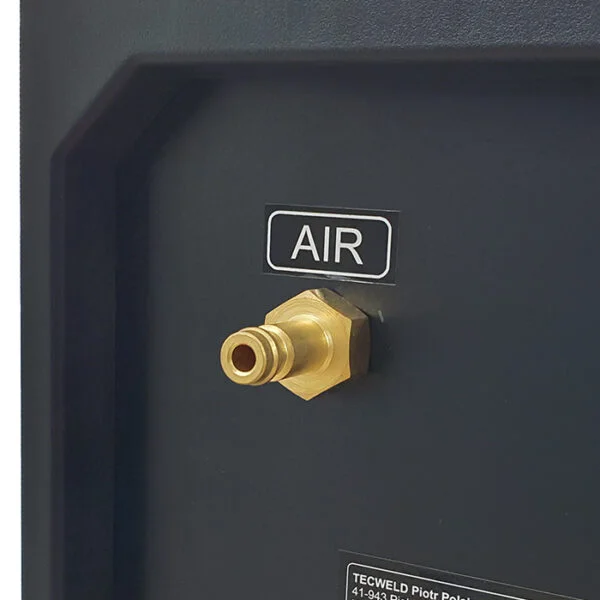

The device has the A-141 6m TRAFIMET handle with HF ionization ignition with a pilot arc and a built-in air preparation unit with a reducer and manometer that allows you to adjust and control the air pressure from the control panel. It is equipped with a 2T / 4T source control switch and the TEST function for checking the correct operation of the air installation and its cleaning.


The set includes a ground cable with a clamp. The list of spare parts for plasma holders is available in the price list.


TECHNICAL DATA:

    • Catalog number:  SINW-CUTTER130
    • Supply voltage [V]: AC 3x400 50Hz
    • Production technology: IGBT
    • Cutting current [A]: 125
    • Duty cycle [%]: 60
    • Max. cutting thickness [mm]: 45
    • Max. current consumption [A]: 29.5
    • Max. power consumption [kVA]: 30
    • Air flow [m 3 / min]: 0.5
    • Ignition method: HF
    • Weight [kg]: 41
    • Dimensions (L x W x H) [mm]: 685 x 455 x 615



FUNCTIONS:

    • HF,
    • 2T / 4T
    • Pilot arc,
    • TEST


Equipment:

Sherman CUTTER 130 plasma cutter

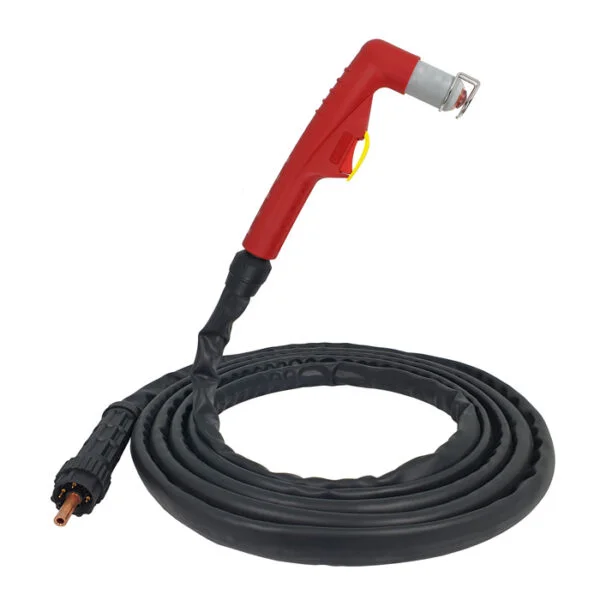

Plasma cutting holder A-141 / 6m
Ground cable
Welding shield
User manual in Polish language
