Sherman TIG 320 320Amp AC/DC MMA IGBT Inverter + WS-7,5LT COOLER + TIG TROLLEY!


Sherman TIG 320 AC/DC Welder Inverter 320A 3x400V MMA + Sherman WS-7 5LT cooler + TIG cart/trolle.


This very powerful welding device was built with a use of IGBT technology, for manual welding DC and AC TIG and electrode welding ( MMA method ), structural steel, and quality aluminum. It is recommended for commercial and craft workshops. It can be used inside and outside, although it is not recommended to use it when raining/snowing, etc.

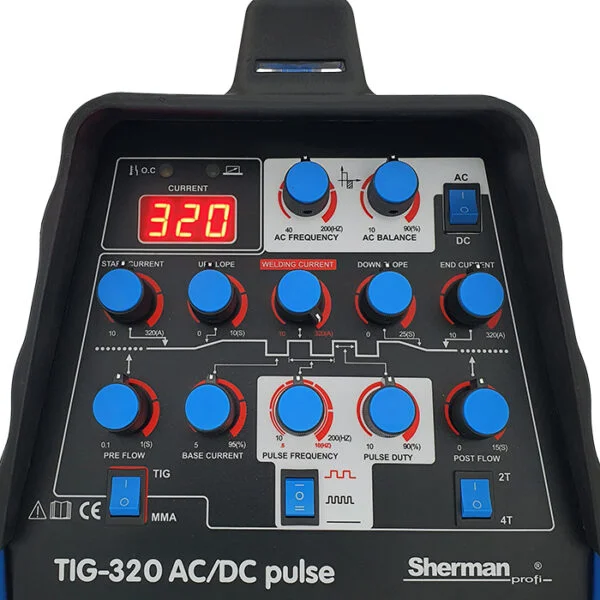

The machine allows full control on all welding parameters of an arc and pulse. It is equipped in HF ignition, 2T/4T function, and the digital displayer showing the current amperage.


The device has a contact-less HF ionizing voltage ignition , adjust the upslope and downslope , adjust the time acceleration and deceleration gas flow, electrode cleaning function and display for welding current.

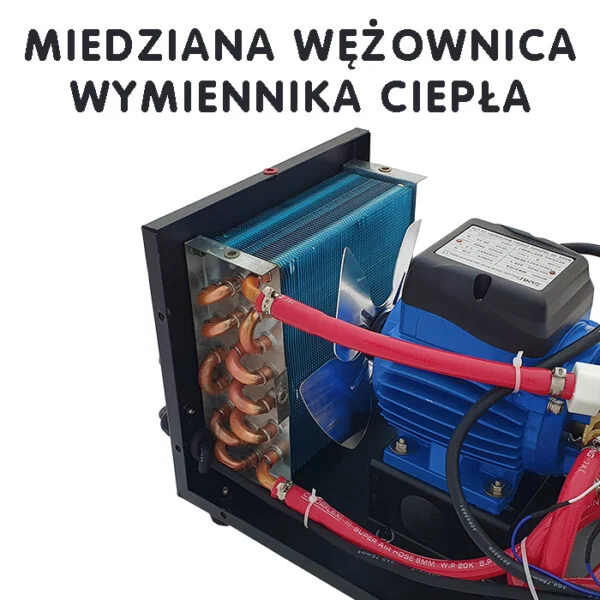

The WS-7,5LT cooler is dedicated to work with the Sherman-profi TIG 320 AC / DC pulse welder and is designed for liquid cooling TIG welding torches, but it is possible to use it for other devices and components that require cooling in a closed circuit. It is recommended to set the cooler under the welding machine. The set includes a set of fasteners enabling this setting. The components of the tried-and-tested WRC-300B cooler were used in the construction of the radiator, the reconstruction and the fluid reservoir changed. The use of a heat exchanger built on a copper coil and stainless steel pumps definitely increases the cooling efficiency and extends the life of the device.


The TIG platform trolley is a stable and durable trolley platform dedicated to the TIG 320 AC / DC pulse set and the WS-7,5LT cooler.
The set includes a holder that holds the cylinder together with the chain, a set of 6 connectors with a cooler and screws connecting the cooler with the running platform.

The welder is recommended for welding professionals.



TECHNICAL DATA:

    • Supply voltage: AC 3x400 ~ 50Hz
    • Welding methods: TIG, AC/DC, MMA
    • Technology: IGBT
    • Duty cycle: 40%
    • Amperage: TIG: 320A / MMA: 270A
    • No load Voltage: 56V
    • Max consumption: TIG: 13.3A / MMA: 15.2A
    • Max consumption: 9.3 kVA
    • Smooth welding regulation
    • Pre-flow gas: 0.1-1s
    • Post-flow gas: 0-15s
    • Upslope: 0-10s
    • Downslope: 0-25s
    • Initial current: 10-320A
    • Base current: 5-95% of the welding current
    • Crater current: 10-320A
    • Pulse frequency: 0.5-200Hz
    • Pulse duration: 10-90%
    • AC frequency: 40-200Hz
    • AC balance: 10-90%
    • Weight: 32kg



FUNCTIONS:

    • AC/DC smooth balance
    • Slope up and down
    • Pre/post flow gas
    • MMA
    • LED display
    • electrode cleaning function
    • AC frequency control knob


Equipment:

    • Sherman Workshop TIG 320 AC/DC welding machine
    • Sherman WS-7,5 cooler
    • Tig trolley
    • Sherman WS-7,5 cooler
    • Tig trolley
    • Ground wire with a clamp
    • TIG torch T-18 4m
    • Box
    • User manual in Polish language (English version available on request
